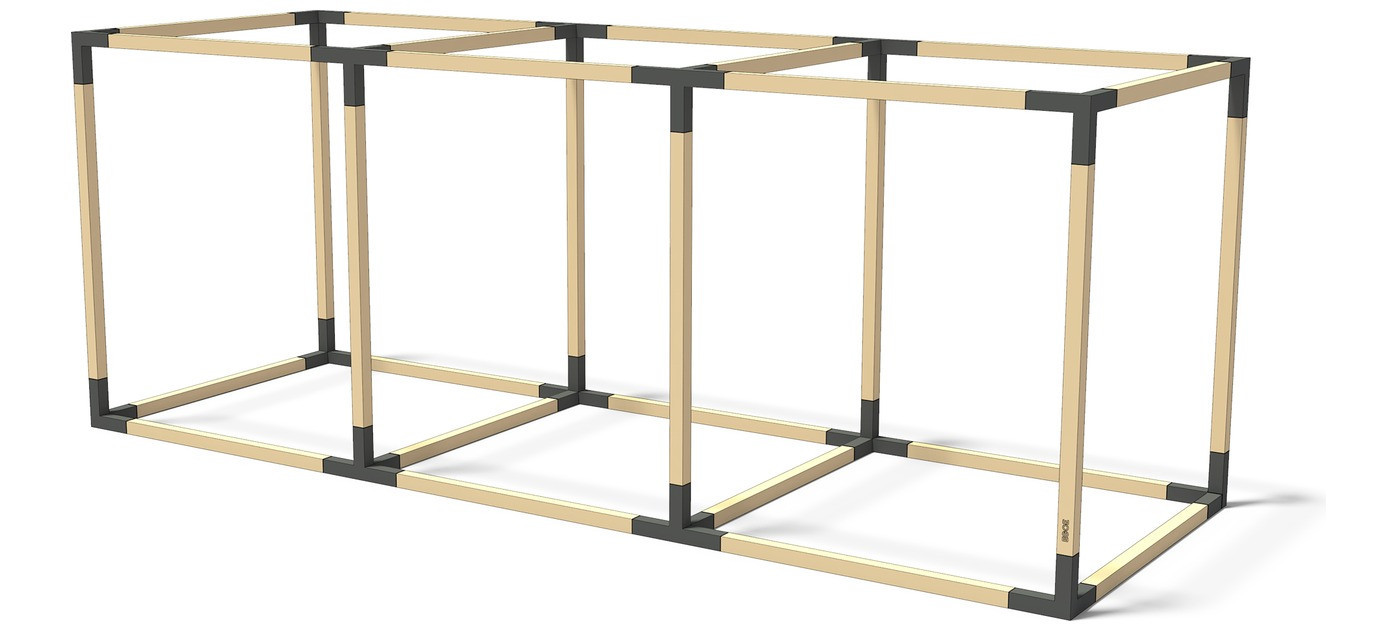

Egoe LEVA triple cube, larch
The triple cube lines up three LEVA bays into a 633.5 cm run. Larch beams and powder-coated metal corner brackets carry the structure. The run takes several roofs and walls at once, so it turns into a covered passage or a longer outdoor room.
structure: larch beams and powder-coated metal corner brackets
material: larch
finish: wooden or steel base
structure colour: on request, 22 standard RAL shades
dimensions: 633.5 x 216.5 x 240 cm
weight: 256 kg (wooden base), 335 kg (steel base)
design: Egoé studio
item code: LEV130-M12000 / LEV130R-M12000
Technical data
- dimensions: 633.5 x 216.5 x 240 cm (6335 x 2165 x 2400 mm)
- weight: 256 kg (wooden base), 335 kg (steel base)
- structure: larch beams and powder-coated metal corner brackets
- material: larch
- finish: wooden or steel base (surcharge for the steel base: + 722 €)
- structure colour: on request, 22 standard RAL shades (RAL 9010, 1013, 1021, 2008, 3020, 3016, 3003, 3012, 5011, 5019, 5024, 6027, 6019, 6010, 6007, 7022, 7006, 7032, 7035, 7016, 9005, 9007)
- design: Egoé studio
- item code: LEV130-M12000 / LEV130R-M12000
- made by Egoé, Czech Republic
About the LEVA system
LEVA is a modular system built from a basic cube and accessories. At home it becomes a children's playroom with a climbing wall, a resting corner with a hanging bed, a dining area of several joined cubes or an outdoor kitchen with herb planters. Companies use it for outdoor offices, festival pergolas, exhibition spaces and cinemas. The structural beams are larch or acacia, the steel joints are galvanised and powder coated, and the textiles and outdoor parts resist weather and need little maintenance. The cubes are the load-bearing part of the system and carry every other module.
See the whole system in the Egoé LEVA category and the other modules of this group under Cubes.
