Cubes

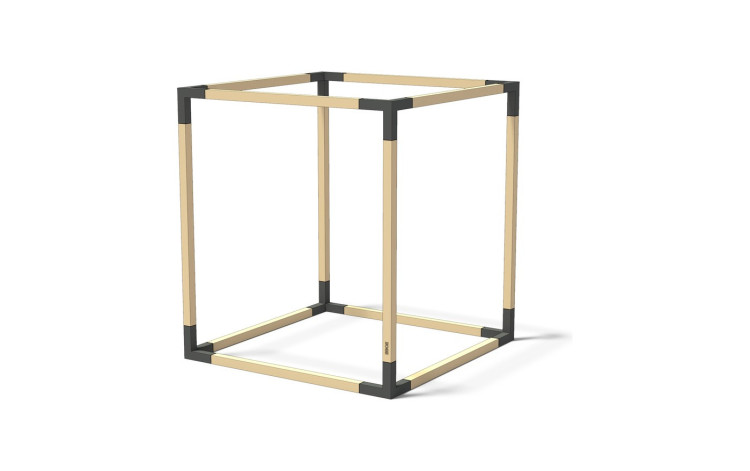

The single cube is the basic module of the LEVA system. Larch beams and powder-coated metal corner brackets form the frame, with a 216.5 x 216.5 cm footprint. You add a roof, a wall, a bench or a planter and build the space you need.

structure: larch beams and powder-coated metal corner brackets
material: larch
finish: wooden or steel base
structure colour: on request, 22 standard RAL shades
dimensions: 216.5 x 216.5 x 240 cm
weight: 111 kg (wooden base), 141 kg (steel base)
design: Egoé studio
item code: LEV110-M12000 / LEV110R-M12000

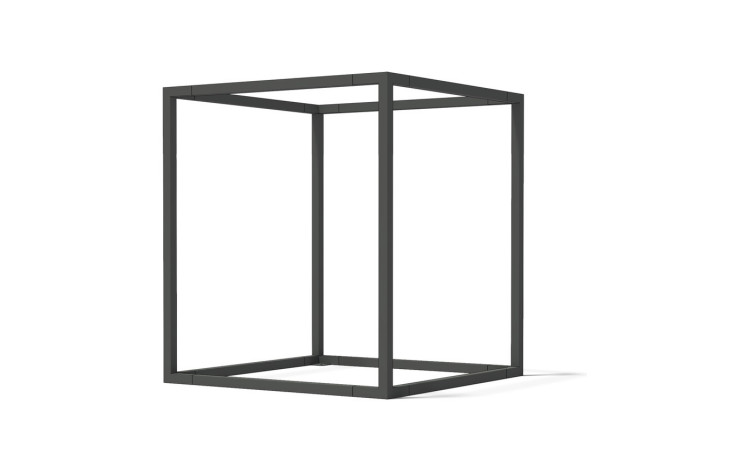

The all-steel single cube is the basic LEVA module for demanding locations. The structure is built from thin-walled 80 x 80 mm steel bars with zinc protection and powder coating, and the fasteners are stainless steel. The cube is dismountable and takes the same roofs, walls and accessories as the wooden version.

structure: steel, zinc coated and powder coated, dismountable
material: steel
structure colour: on request, 22 standard RAL shades
dimensions: 216.5 x 216.5 x 240 cm
weight: 168 kg
design: Egoé studio
item code: LEV2110-002000

The terrace frame is a low base that carries a LEVA module. It is built from larch beams and powder-coated metal corner brackets and stands 8 cm high. Use it where the cube needs to sit above the ground and line up with the terrace.

structure: larch beams and powder-coated metal corner brackets
material: larch
finish: wooden or steel base
structure colour: on request, 22 standard RAL shades
dimensions: 216.5 x 107.9 x 8 cm
weight: 19.5 kg (wooden base), 31 kg (steel base)
design: Egoé studio
item code: LEV111-M12000 / LEV111R-M12000

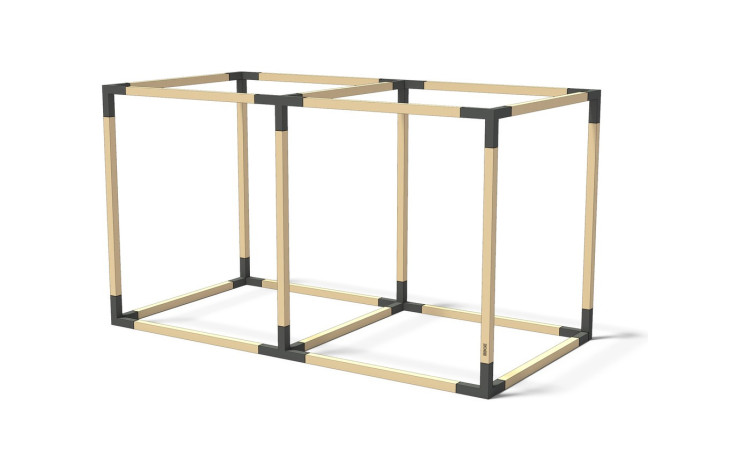

The double cube joins two LEVA bays into one 425 x 216.5 cm plan. Larch beams and powder-coated metal corner brackets carry the structure. The space takes a dining table with benches or an outdoor office.

structure: larch beams and powder-coated metal corner brackets
material: larch
finish: wooden or steel base
structure colour: on request, 22 standard RAL shades
dimensions: 425 x 216.5 x 240 cm
weight: 183 kg (wooden base), 238 kg (steel base)
design: Egoé studio
item code: LEV120-M12000 / LEV120R-M12000

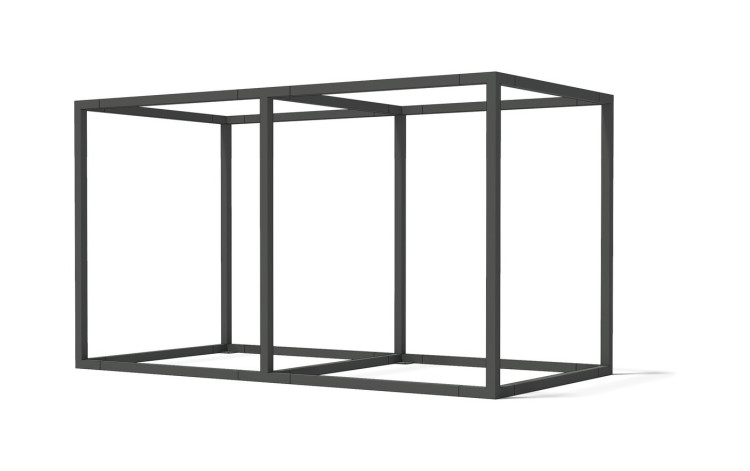

The all-steel double cube covers a 425 x 216.5 cm plan. The structure is built from thin-walled 80 x 80 mm steel bars with zinc protection and powder coating, with stainless steel fasteners. The module is dismountable and made for public space and long outdoor service.

structure: steel, zinc coated and powder coated, dismountable
material: steel
structure colour: on request, 22 standard RAL shades
dimensions: 425 x 216.5 x 240 cm
weight: 283.6 kg
design: Egoé studio
item code: LEV2120-002000

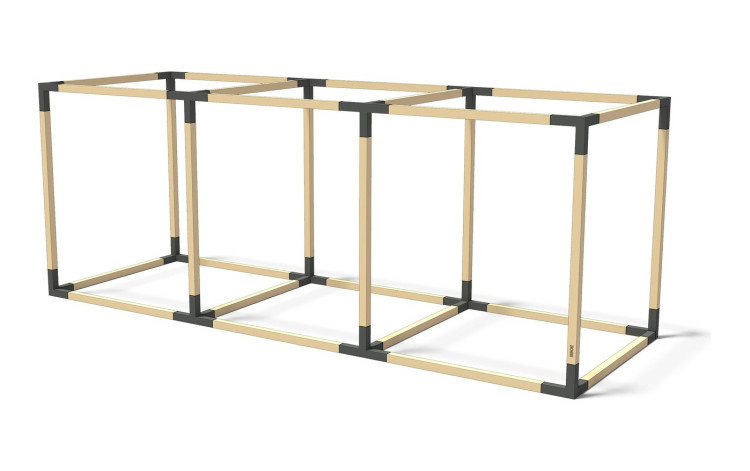

The triple cube lines up three LEVA bays into a 633.5 cm run. Larch beams and powder-coated metal corner brackets carry the structure. The run takes several roofs and walls at once, so it turns into a covered passage or a longer outdoor room.

structure: larch beams and powder-coated metal corner brackets
material: larch
finish: wooden or steel base
structure colour: on request, 22 standard RAL shades
dimensions: 633.5 x 216.5 x 240 cm
weight: 256 kg (wooden base), 335 kg (steel base)
design: Egoé studio
item code: LEV130-M12000 / LEV130R-M12000

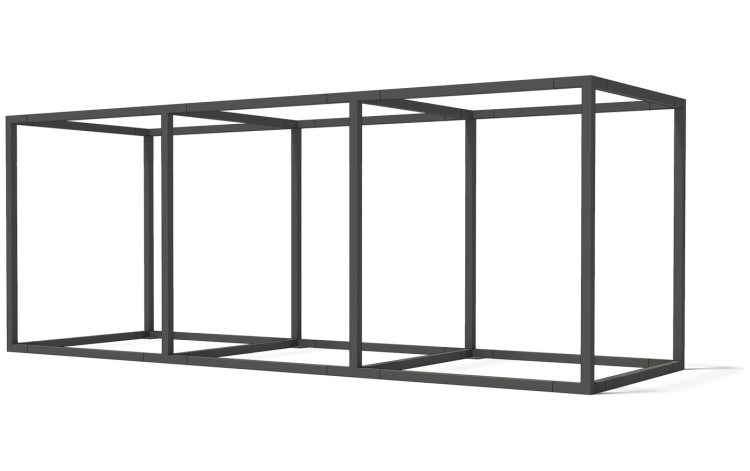

The all-steel triple cube forms a 633.5 cm run. The structure is built from thin-walled 80 x 80 mm steel bars with zinc protection and powder coating. The module is dismountable and carries LEVA roofs, walls and accessories.

structure: steel, zinc coated and powder coated, dismountable
material: steel
structure colour: on request, 22 standard RAL shades
dimensions: 633.5 x 216.5 x 240 cm
weight: 399 kg
design: Egoé studio
item code: LEV2130-002000

The L-shaped triple cube sets three LEVA bays into a corner, with a 425 x 425 cm plan. Larch beams and powder-coated metal corner brackets carry the structure. The L closes two sides and leaves the corner open, which works along a wall or a garden boundary.

structure: larch beams and powder-coated metal corner brackets
material: larch
finish: wooden or steel base
structure colour: on request, 22 standard RAL shades
dimensions: 425 x 425 x 240 cm
weight: 256 kg (wooden base), 334 kg (steel base)
design: Egoé studio
item code: LEV135-M12000 / LEV135R-M12000

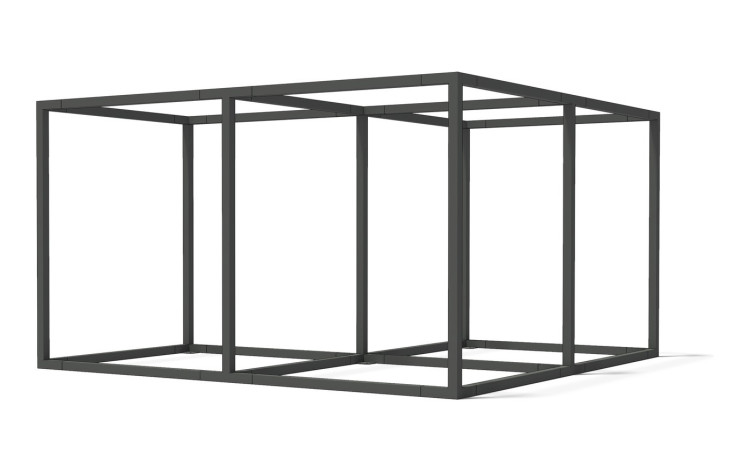

The all-steel L-shaped triple cube sets three bays into a corner on a 425 x 425 cm plan. The structure is built from thin-walled 80 x 80 mm steel bars with zinc protection and powder coating. The module is dismountable and takes LEVA roofs, walls and accessories.

structure: steel, zinc coated and powder coated, dismountable
material: steel
structure colour: on request, 22 standard RAL shades
dimensions: 425 x 425 x 240 cm
weight: 398 kg
design: Egoé studio
item code: LEV2135-002000

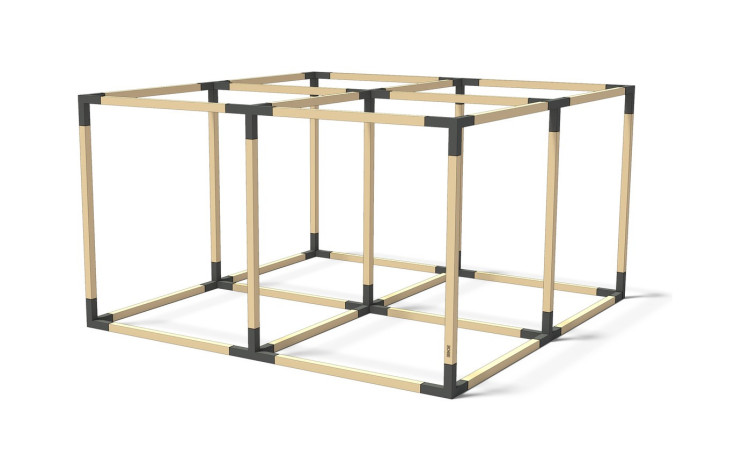

The quadruple cube joins four LEVA bays into a 425 x 425 cm square. Larch beams and powder-coated metal corner brackets carry the structure. The closed plan suits an outdoor dining room, an exhibition space or an outdoor office for a team.

structure: larch beams and powder-coated metal corner brackets
material: larch
finish: wooden or steel base
structure colour: on request, 22 standard RAL shades
dimensions: 425 x 425 x 240 cm
weight: 301 kg (wooden base), 395 kg (steel base)
design: Egoé studio
item code: LEV145-M12000 / LEV145R-M12000

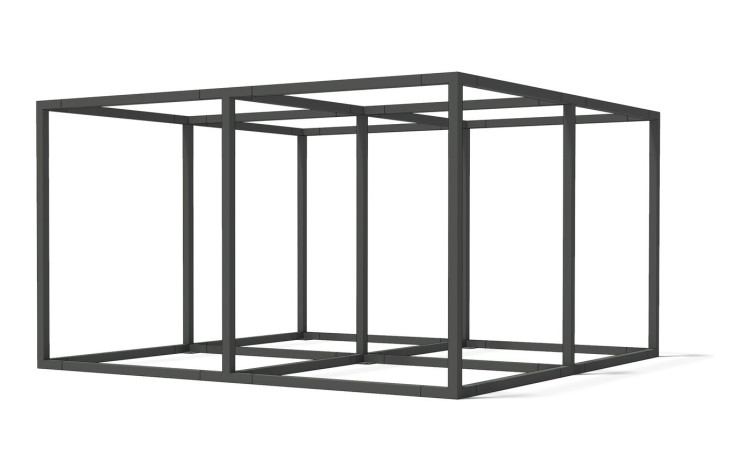

The all-steel quadruple cube covers a 425 x 425 cm square. The structure is built from thin-walled 80 x 80 mm steel bars with zinc protection and powder coating. The module is dismountable and made for public and commercial installations.

structure: steel, zinc coated and powder coated, dismountable
material: steel
structure colour: on request, 22 standard RAL shades
dimensions: 425 x 425 x 240 cm
weight: 471 kg
design: Egoé studio
item code: LEV2145-002000
