Ocean Master MAX F-1 up to R 5.5 m or 4 x 4 m

Technical data

• frame and mast: Armor-Wall aluminium, high tension stainless steel reinforcement cables, tensioned stainless steel pocket construction, mast Ø 73 mm
• standard features: non-vented canopy, fishtail profile with canopy binding (matching, contrasting on request), 25 cm accent border or accent cap in Marine MXT fabric (level C), security stem, polished titanium hub, polished MAX acorn finial.
• sizes:
  • F1OMX13.0SQ: 400 x 400 cm, square, mast Ø 73 mm, minimum anchor weight 270 kg
  • F1OMX18.0OCT: R 550 cm, octagon, mast Ø 73 mm, minimum anchor weight 270 kg
• fabric: Premier PXT (level E) is included. You find the fabric colours below.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea). Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java).
• lift: the EasyDrive crank lift with telescoping mast is included.
• lighting and heating: not available for this model.
• ordered separately (accessories):
  • anchors and mounts:
    • Aluma-Crete round anchor with lift handles (ACF)
    • G-MAX Plate square anchor (GV)
    • Full Aluma-Crete cube anchor (AGSP)
    • Full cube cushion for the cube anchor (AGSP-FCC)
    • MAX aluminium extension cover (BASE-EXTCV)
    • Grounding lug (GROUNDINGLUG)
    • MAX in-ground security mount for new concrete (IGSM)
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE)
    • MAX stainless steel flush mount for dry and new concrete (OMXSSFM)
    • MAX stainless steel flush mount for wood decks (OMXSSFM(D))
    • MAX stainless steel extension (BASE-EXT)
  • replacement canopy:
    • Replacement canopy for Ocean Master MAX center post

Extras on request
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Premier PXT 10000, price level E (included)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (included)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (included)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Marine MXT 9000-9600 for the 25 cm accent border and the cap, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800 for the 25 cm accent border and the cap, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700 for the 25 cm accent border and the cap, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Standard frame



Powder coated frame



Plantation Aluma-Teak frame

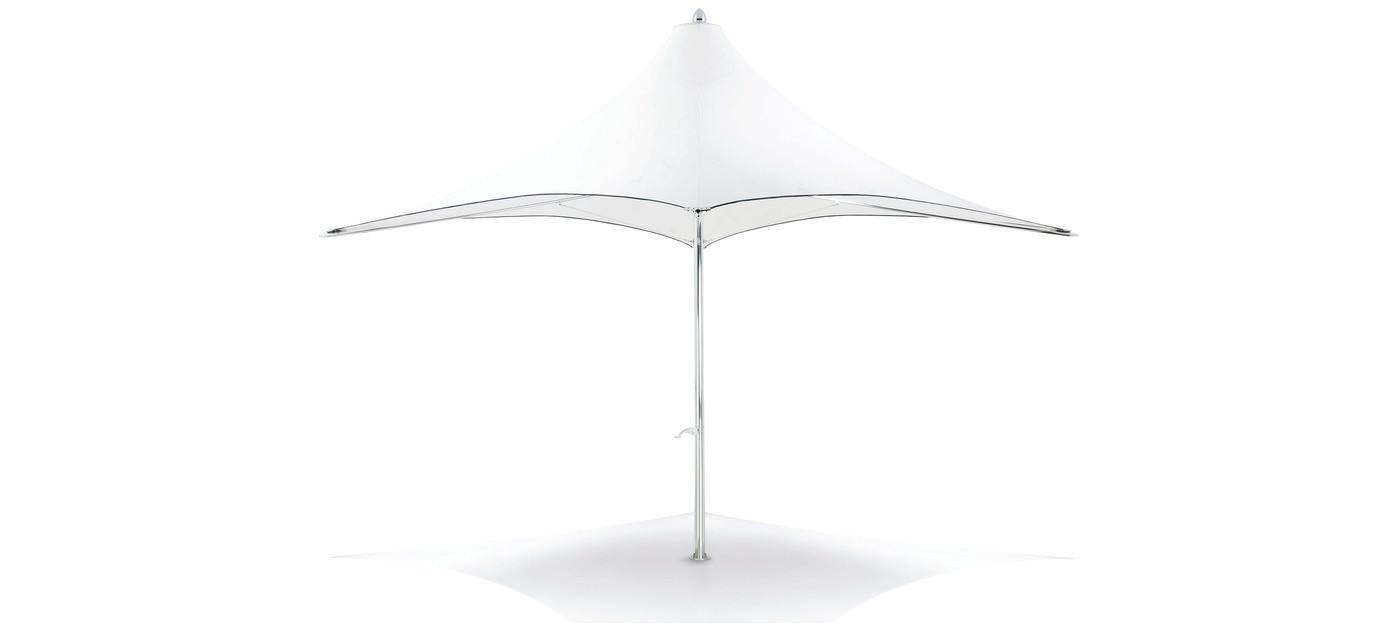

Ocean Master MAX F-1
The F-1 is the most durable and wind resistant Tuuci parasol. It has high tension stainless steel reinforcement cables, Armor-Wall aluminium construction and a tensioned stainless steel pocket construction. It stands wind gusts up to 70 km/h.

The canopy is made of Premier PXT fabric (level E) and has no wind vent. The fishtail profile with binding and a 25 cm accent border or accent cap in Marine MXT fabric are included.

You can choose a square of 400 x 400 cm or an octagon of R 550 cm. Both open with the EasyDrive crank lift and telescoping mast. The minimum anchor weight is 270 kg.

Dimensions
