Ocean Master MAX Nautical Teak up to R 4 m or 3 x 3 m

Technical data

• frame: Nautical Teak (hub, mast, ribs and struts), mast reinforced with an aluminium spine, Ø 60 or 76.2 mm (see sizes)
• standard features: single wind vent in the canopy colour (contrasting on request), market cut profile with binding (matching, contrasting on request), security sleeve on the 60 mm mast and security stem on the 76.2 mm mast, Nautical Teak hub, mast, ribs and struts, polished MAX acorn finial. The parasol may not close over a table.
• sizes:
  • TKX6.5SQ: 200 x 200 cm, square, mast Ø 60 mm, minimum anchor weight 64 kg, cover CX1
  • TKX8SQ: 245 x 245 cm, square, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX1
  • TKX10SQ: 300 x 300 cm, square, mast Ø 76.2 mm, minimum anchor weight 90 kg, cover CX2
  • TKX9OCT: R 275 cm, octagon, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX1
  • TKX11.5OCT: R 340 cm, octagon, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX2
  • TKX13OCT: R 400 cm, octagon, mast Ø 76.2 mm, minimum anchor weight 127 kg, cover CX2
  • TKX8X12RECT: 245 x 365 cm, rectangle, mast Ø 76.2 mm, minimum anchor weight 90 kg, cover CX2
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) costs extra. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
• frame colour: natural teak (Natural). The price list shows no other finish.
• lift: TKX6.5SQ, TKX8SQ, TKX9OCT and TKX11.5OCT come with the Auto-LOC marine pulley lift, TKX10SQ, TKX13OCT and TKX8X12RECT with the EasyDrive crank lift and telescoping mast. Both are included.
• lighting and heating: not available for this model.
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CX1
    • Custom protective cover CX2
  • anchors and mounts:
    • Aluma-Crete round anchor with lift handles (ACF)
    • G-MAX Plate square anchor (GV)
    • Full Aluma-Crete cube anchor (AGSP)
    • Full cube cushion for the cube anchor (AGSP-FCC)
    • MAX aluminium extension cover (BASE-EXTCV)
    • Grounding lug (GROUNDINGLUG)
    • MAX in-ground security mount for new concrete (IGSM)
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE)
    • MAX stainless steel flush mount for dry and new concrete (OMXSSFM)
    • MAX stainless steel flush mount for wood decks (OMXSSFM(D))
    • MAX stainless steel extension (BASE-EXT)
  • replacement canopy:
    • Replacement canopy for Ocean Master MAX center post

Extras on request
contrasting binding on canopy and vent
15 cm accent border on the canopy
valance (straight, scalloped, classic or modern Roman)
15 cm cord fringe
contrasting welt, not with a double-sided canopy
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Softscape, printed canopy pattern
Tuuci Softscape is a pattern printed on the canopy. You choose from 23 patterns in 6 themes. Tropical: Belize, Tulum, Tahiti, Kauai. Florals: Adelaide, Lucia, Primrose, Kaleidoscope. Maritime: Gulfstream, Reef, Dockside. Whimsical: Wonder, Tamarin, Plume, Fable. Wildlife: Savanna, Prowl, Safari. Abstract: Web, Doodle, Ripple, Trace, Prism. You get it in 1 or 2 colours, with or without a valance. The surcharge depends on the size. In the shop you select it with level C fabric. We quote other combinations on request.

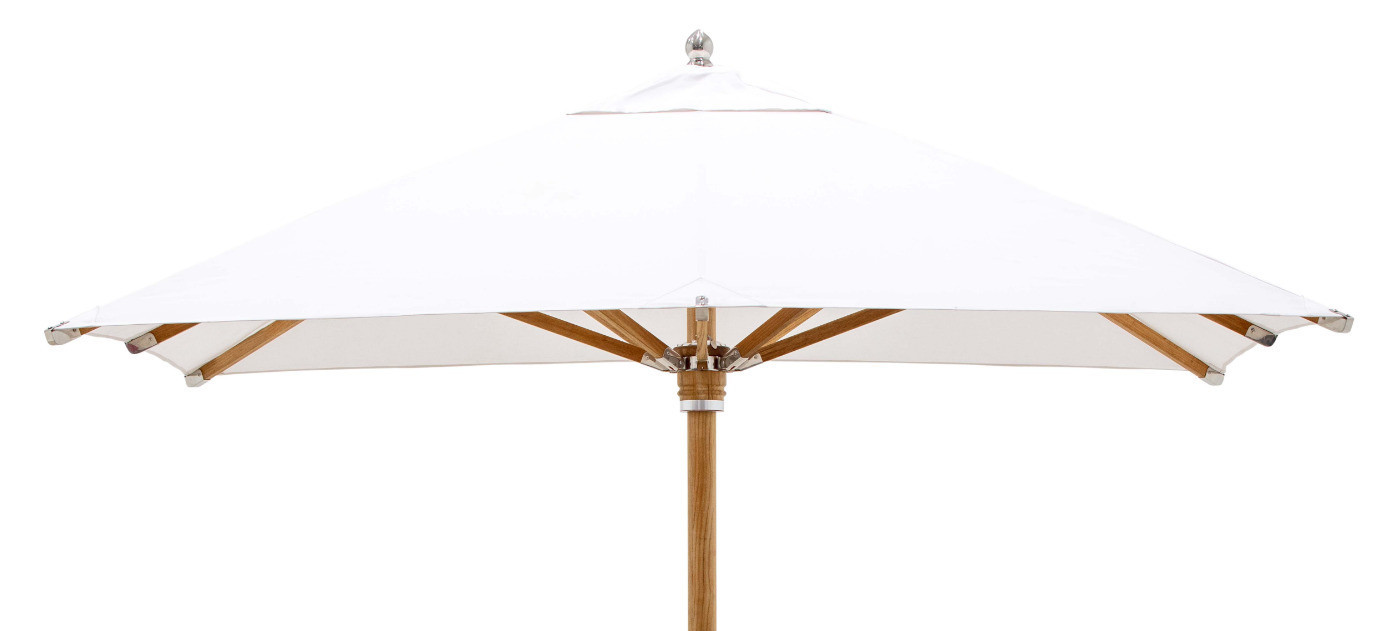

Ocean Master MAX Nautical Teak
This teak parasol takes its cue from classic and modern sailing architecture. The mast has a reinforced aluminium spine. This adds strength and makes room for an internal telescoping crank lift. Tuuci says this was never done before on a teak parasol.

The mast is 60 mm on the smaller sizes and 76.2 mm on the larger ones. The canopy has a single wind vent and a market cut profile with binding. It comes in 7 sizes, from 200 x 200 cm to R 400 cm.
