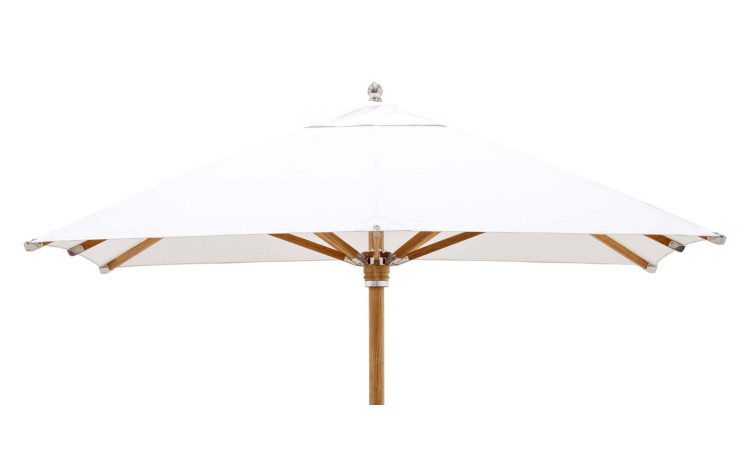

Ocean Master MAX Nautical Teak

Ocean Master MAX Nautical Teak is a teak parasol with a reinforced aluminium spine in the mast. The spine makes room for an internal telescoping crank lift. It comes in 7 sizes, from 200 x 200 cm to R 400 cm.
frame: Nautical Teak, mast Ø 60 or 76.2 mm
lift: Auto-LOC or EasyDrive, depending on size
sizes: square 200 x 200 to 300 x 300 cm, octagon R 275 to R 400 cm, rectangle 245 x 365 cm
frame colours: natural teak
fabric: Marine MXT level C, Premier PXT level E
Softscape: 23 printed patterns (surcharge)
code: TKX

Round anchor with an aluminium shell filled with concrete and lift handles. Choose ACF200 with 91 kg or ACF250 with 109 kg. Marine Silver and 8 powder coats come at no extra cost, Plantation Aluma-Teak costs extra.
code: ACF

Square anchor made of galvanised steel plates with a stainless steel security stem. You can stack the plates up to 363 kg. The top plate cover and Tuff wheels are optional.
code: GV-MAX

The cube anchor is a complete set with frame, pavers and cover. It measures 116 x 116 x 20 cm and weighs 317 kg (8 pavers) or 437 kg (12 pavers). Powder coat is included.
code: AGSP

The upholstered cushion covers the full cube anchor and turns it into a seat. It measures 116 x 116 x 20 cm. Level B and C fabrics are included, Premier PXT (level E) costs extra.
code: AGSP-FCC

The aluminium cover hides the MAX stainless steel extension (BASE-EXT). You set the height from 10 to 40 cm with your order. The standard finish is Silver Sand.
code: BASE-EXTCV

Mount for setting into newly poured concrete. It fits all MAX anchor stems. It measures 15.2 x 31.5 cm.
code: IGSM

Stainless steel plate for fixing onto an existing concrete pad. It comes with 8 drop-in expansion anchors. It fits all MAX anchor stems.
code: MAXPLATE

Stainless steel flush mount that sits level with the floor. It suits dry and newly poured concrete. Dry concrete needs core drilling. The aluminium adapter ships with the MAX parasol.
code: OMXSSFM

Stainless steel flush mount for wood decks with a side mount bracket. The bolts for the side mount are included. The aluminium adapter ships with the MAX parasol.
code: OMXSSFM(D)

The stainless steel extension raises the MAX parasol above its mount. You set the height from 5 to 50 cm with your order. It fits all MAX anchor stems.
code: BASE-EXT
