Ocean Master MAX Classic Dual Cantilever up to 4.25 x 8.5 m

Technical data

• frame: dual cantilever parasol, one mast carries two canopies
• standard features: single wind vent in the canopy colour (contrasting on request), market cut profile, security stem, polished titanium hub, polished MAX acorn finial.
• sizes:
  • CLD8.0SQ: 245 x 490 cm, double square, minimum anchor weight 180 kg, 2 covers CXD3
  • CLD8.0SQ-HWS: 245 x 490 cm, double square, with high wind stabilisers (HWS), minimum anchor weight 180 kg, 2 covers CXD3
  • CLD10.0SQ: 300 x 600 cm, double square, minimum anchor weight 180 kg, 2 covers CXD3
  • CLD10.0SQ-HWS: 300 x 600 cm, double square, with high wind stabilisers (HWS), minimum anchor weight 180 kg, 2 covers CXD3
  • CLD12.0SQ-HWS: 365 x 740 cm, double square, with high wind stabilisers (HWS), minimum anchor weight 270 kg, 2 covers CXD1
  • CLD13.0SQ-HWS: 400 x 790 cm, double square, with high wind stabilisers (HWS), minimum anchor weight 270 kg, 2 covers CXD1
  • CLD14.0SQ-HWS: 425 x 850 cm, double square, with high wind stabilisers (HWS), minimum anchor weight 270 kg, 2 covers CXD4
  • CLD9.0OCT: 275 x 540 cm, double octagon, minimum anchor weight 180 kg, 2 covers CXD2
  • CLD9.0OCT-HWS: 275 x 540 cm, double octagon, with high wind stabilisers (HWS), minimum anchor weight 180 kg, 2 covers CXD2
  • CLD11.0OCT: 340 x 680 cm, double octagon, minimum anchor weight 180 kg, 2 covers CXD2
  • CLD11.0OCT-HWS: 340 x 680 cm, double octagon, with high wind stabilisers (HWS), minimum anchor weight 180 kg, 2 covers CXD2
  • CLD13.0OCT-HWS: 400 x 800 cm, double octagon, with high wind stabilisers (HWS), minimum anchor weight 270 kg, 2 covers CXD3
  • CLD16X12RECT: 490 x 365 cm, double rectangle, minimum anchor weight 180 kg, 2 covers CXD3
  • CLD16X12RECT-HWS: 490 x 365 cm, double rectangle, with high wind stabilisers (HWS), minimum anchor weight 180 kg, 2 covers CXD3
  • CLD20X14RECT-HWS: 600 x 425 cm, double rectangle, with high wind stabilisers (HWS), minimum anchor weight 270 kg, 2 covers CXD1
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) costs extra. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea). Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java).
• lift: the EasyDrive crank lift with telescoping mast is included.
• Ambia LED lighting (2 lights shining up into the canopies): mains power 220 V. Battery power. 2 Ambia LED lights with automation. You choose the lights with your order, Tuuci fits them at the factory. With automation and a valance, the back valance of the canopy is left out.
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CXD1 for dual cantilevers (2 needed)
    • Custom protective cover CXD2 for dual cantilevers (2 needed)
    • Custom protective cover CXD3 for dual cantilevers (2 needed)
    • Custom protective cover CXD4 for dual cantilevers (2 needed)
  • anchors and mounts:
    • G-MAX Plate square anchor (GV)
    • MAX aluminium extension cover (BASE-EXTCV)
    • MAX in-ground security mount for new concrete (IGSM)
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE)
    • MAX stainless steel extension (BASE-EXT)
  • lighting and heating:
    • 2 Ambia LED lights and 4 heaters for Ocean Master MAX Classic Dual Cantilever
    • 2 Ambia LED lights, 4 heaters and automation for Ocean Master MAX Classic Dual Cantilever
    • Additional battery for Ambia LED
    • Single bay charger for Ambia LED batteries
    • Quad bay charger for Ambia LED batteries
  • replacement canopy:
    • Replacement canopy for Ocean Master MAX and M1 cantilevers

Extras on request
contrasting binding on canopy and vent
15 cm accent border on the canopy
valance (straight, scalloped, classic or modern Roman)
15 cm cord fringe
contrasting welt, not with a double-sided canopy
double scissor assembly, not on CLD14.0SQ-HWS
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
On the dual parasol the prices are for the whole parasol.
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Standard frame



Powder coated frame



Plantation Aluma-Teak frame

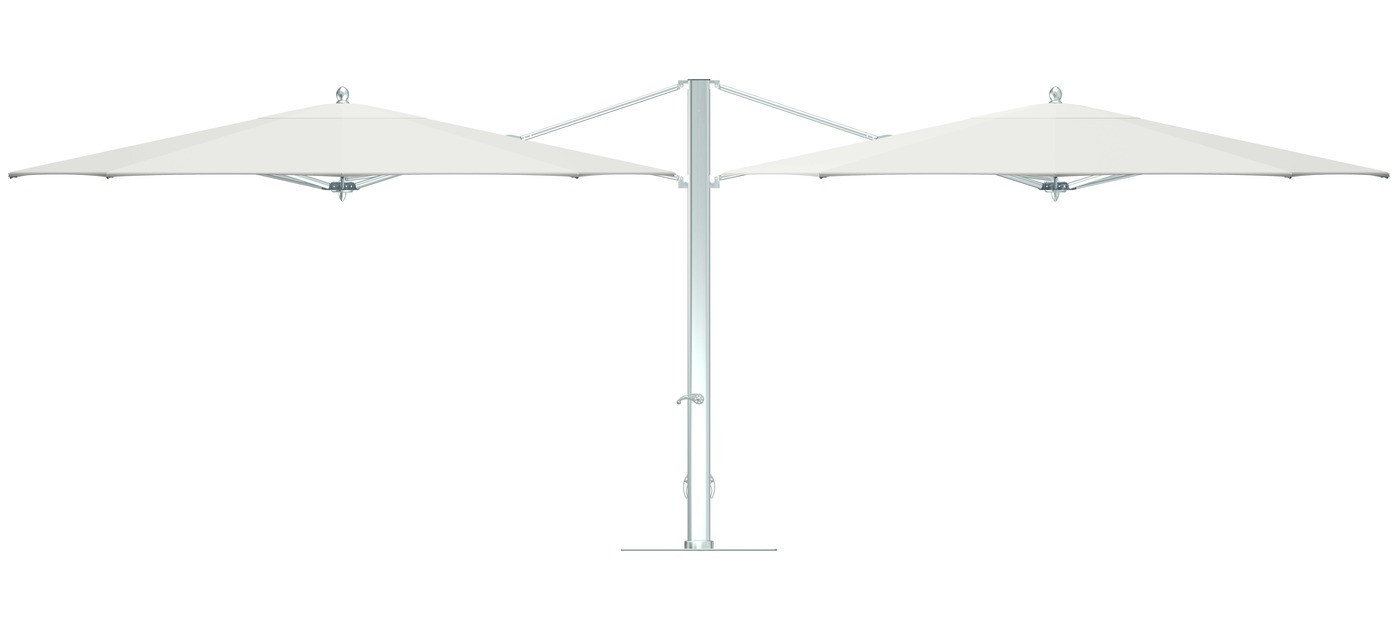

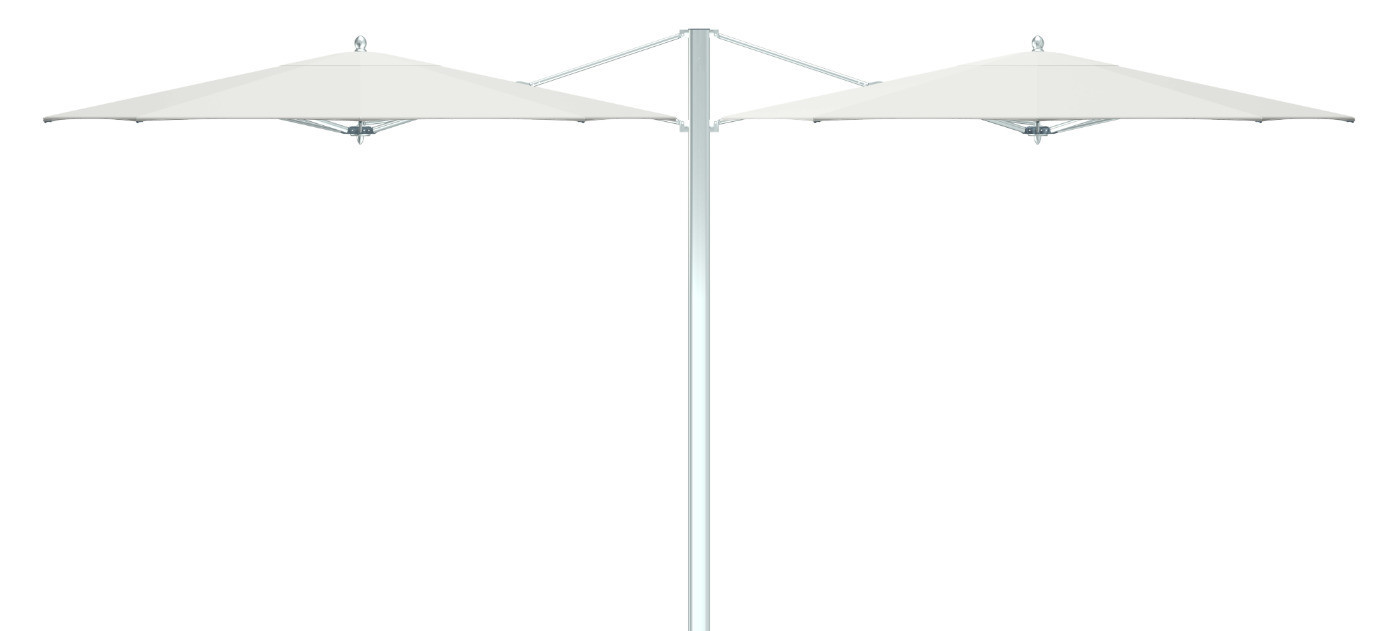

Ocean Master MAX Classic Dual Cantilever
The Dual Cantilever is a double parasol. One mast carries two canopies, so you get two separate shaded areas under one parasol, with no gap.

It comes in 9 sizes, from 245 x 490 cm to 400 x 800 cm. The largest sizes are only available with high wind stabilisers (HWS). The minimum anchor weight is 180 or 270 kg. You need two covers to protect it.

Dimensions
