Ocean Master M1 Zero Horizon up to R 3.7 m or 2.9 x 2.9 m

Technical data

• frame: mast Ø 38.1 or 51 mm (see sizes)
• standard features: market cut profile, polished titanium hub, Triton finial.
• sizes:
  • OMZ6.5SQ: 200 x 200 cm, square, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3
  • OMZ7.5SQ: 225 x 225 cm, square, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3
  • OMZ8.5SQ: 260 x 260 cm, square, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available
  • OMZAS9.5SQ: 290 x 290 cm, square, Auto-Scope version, mast Ø 51 mm, minimum anchor weight 64 kg, cover SS4/CS4, EasyDrive crank available
  • OMZ8.0OCT: R 245 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3
  • OMZ10.0OCT: R 300 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3
  • OMZ11.0OCT: R 340 cm, octagon, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3
  • OMZ12.0OCT: R 370 cm, octagon, mast Ø 51 mm, minimum anchor weight 64 kg, cover SS3/CS3
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) costs extra. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea). Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java).
• lift: the Auto-LOC marine pulley lift is included. The EasyDrive crank lift costs extra. The sizes list shows where it is available.
• lighting and heating: not available for this model.
• mounting: Auto-Scope sizes need a 51 mm security sleeve (at extra cost on the anchors).
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CS3
    • Custom protective cover CS4
    • Standard protective cover, dark grey polyester SS3
    • Standard protective cover, dark grey polyester SS4
  • anchors and mounts:
    • Aluma-Crete round anchor with wheels (ACFW)
    • Aluma-Crete round anchor with lift handles (ACF)
    • G-Plate round anchor (GV)
    • G-Plate square anchor (GV)
    • Security sleeve deck mount (DECKMNT)
    • Flush mount for concrete, soil or sand (SSFMC)
    • Stainless steel flush mount for existing concrete (FLUSHMT)
    • Aluminium sand anchor (SANDANCHOR)
    • Second rope hook (ROPEHOOK)
    • Aluminium extension sleeve with hitch pin (EXTPOLE)
    • Stainless steel extension sleeve with hitch pin (SSEXTPOLE)
    • Stainless steel M1 center post for pools (SSCPMAST)
    • Stainless steel pool flush mount with stainless extension (FLUSHMTSS)
    • Stainless steel pool flush mount with containment cup (FLUSHMTSSCUP)
    • Grounding lug (GROUNDINGLUG)
  • replacement canopy:
    • Replacement canopy for Ocean Master M1 center post

Extras on request
longer mast (10, 20 or 30 cm)
M1 PLUS mast Ø 51 mm (included on the Auto-Scope sizes), needs a 51 mm stainless steel security sleeve (at extra cost)
contrasting binding on the canopy
15 cm accent border on the canopy
15 cm cord fringe
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Softscape, printed canopy pattern
Tuuci Softscape is a pattern printed on the canopy. You choose from 23 patterns in 6 themes. Tropical: Belize, Tulum, Tahiti, Kauai. Florals: Adelaide, Lucia, Primrose, Kaleidoscope. Maritime: Gulfstream, Reef, Dockside. Whimsical: Wonder, Tamarin, Plume, Fable. Wildlife: Savanna, Prowl, Safari. Abstract: Web, Doodle, Ripple, Trace, Prism. You get it in 1 or 2 colours. The surcharge depends on the size. In the shop you select it with the Polished Titanium frame and level C fabric. We quote other combinations on request.

Standard frame



Powder coated frame



Plantation Aluma-Teak frame

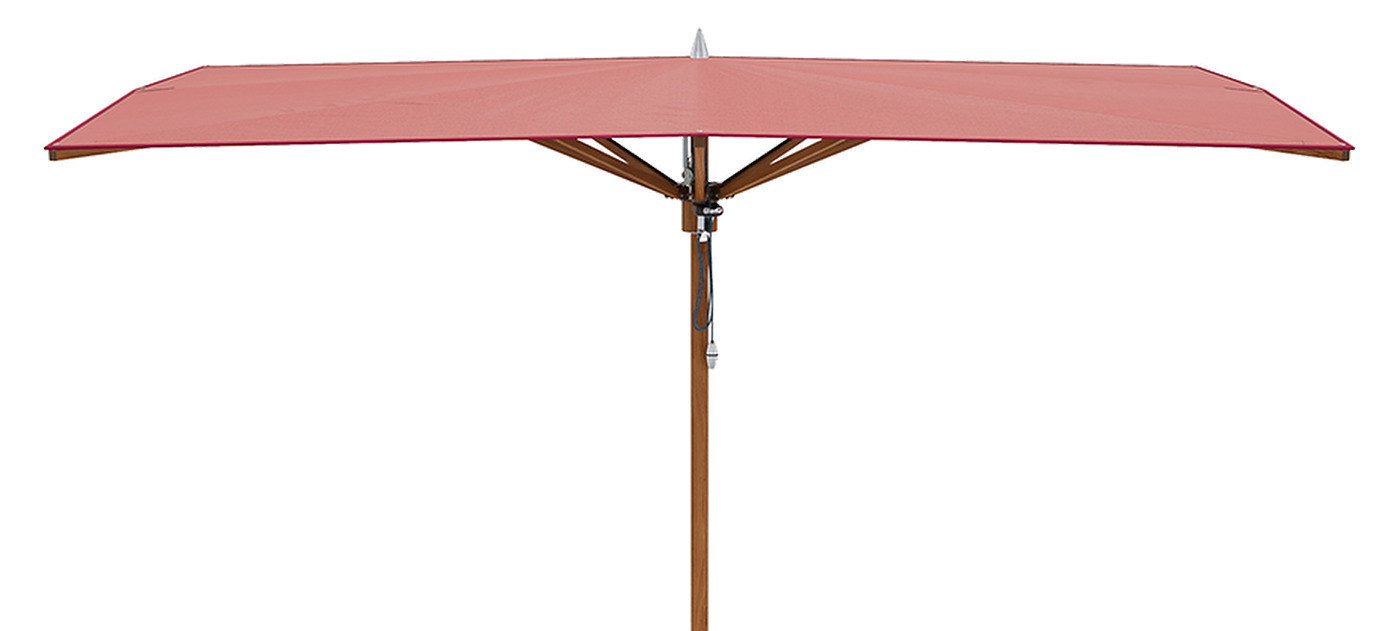

Ocean Master M1 Zero Horizon
The Zero Horizon is a minimalist take on the parasol. The canopy has a "zero" vertical profile, so it gives you a lot of shade and hardly blocks your view of the nature around you. The canopy has a market cut profile.

You can choose from 4 squares from 200 x 200 to 290 x 290 cm and 4 octagons from R 245 to R 370 cm. All sizes have the Auto-LOC marine pulley lift, two are also available with the EasyDrive crank lift.

Dimensions
