Bay Master MAX Classic up to R 4.25 m or 4 x 4 m

Technical data

• frame: flexible and lightweight, resistant to rust and corrosion, mast Ø 60 mm
• standard features: stainless steel security sleeve, single wind vent in the canopy colour (contrasting on request), market cut profile, brushed acorn finial.
• sizes:
  • BMX10.0SQ: 300 x 300 cm, square, minimum anchor weight 64 kg, cover CX4
  • BMX13.0SQ: 400 x 400 cm, square, minimum anchor weight 90 kg, cover CX4
  • BMX14.0OCT: R 425 cm, octagon, minimum anchor weight 90 kg, cover CX4
• fabric: the Comfort CXT and Light LXT series (level B) are included. All Marine MXT series (level C) cost extra. The price list shows no other level for this model. You find the fabric colours below.
• frame colour: Satin Anodized. The price list shows no other finish.
• lift: the counter balanced manual lift with telescoping mast is included.
• lighting (package P2, lights only): 4 ambient lights 12 V DC, soft white, on and off touch switch, 220 V for Europe. You choose the lights with your order, because Tuuci fits them during manufacturing. The price list shows no heating.
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CX4
  • anchors and mounts:
    • Aluma-Crete round anchor with lift handles (ACF)
    • G-MAX Plate square anchor (GV)
    • MAX aluminium extension cover (BASE-EXTCV)
    • MAX in-ground security mount for new concrete (IGSM)
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE)
    • MAX stainless steel extension (BASE-EXT)

Extras on request
valance (straight, scalloped, classic or modern Roman)
15 cm cord fringe
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Comfort CXT 8000, price level B (included)
An acrylic fabric for smaller parasols where the strength of a marine grade fabric is not needed. It also suits furniture, so you can match canopies and upholstery. The hand-tufted blossoms of the Ocean Master MAX Bolero are made from it too.

Light LXT 7700, price level B (included)
A lighter alternative to the MXT 9700 series. The woven polyester fabric suits smaller parasols.

Marine MXT 9000-9600, price level C (at extra cost)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (at extra cost)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (at extra cost)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

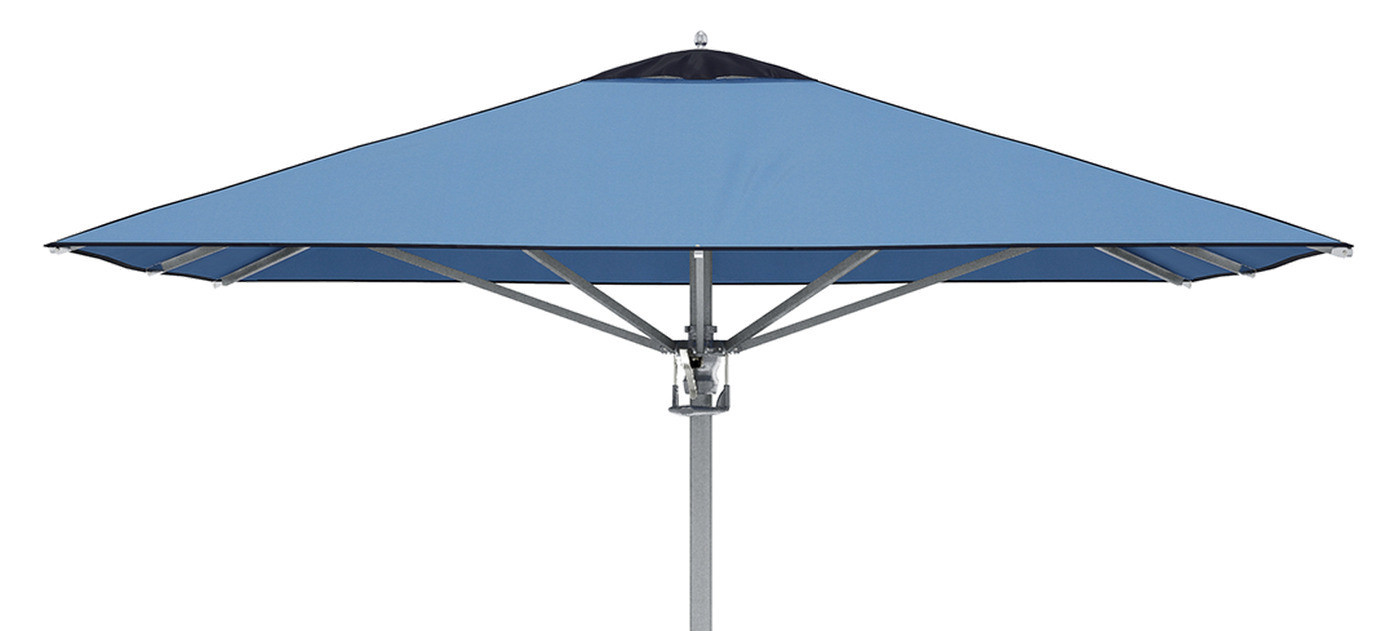

Bay Master MAX Classic

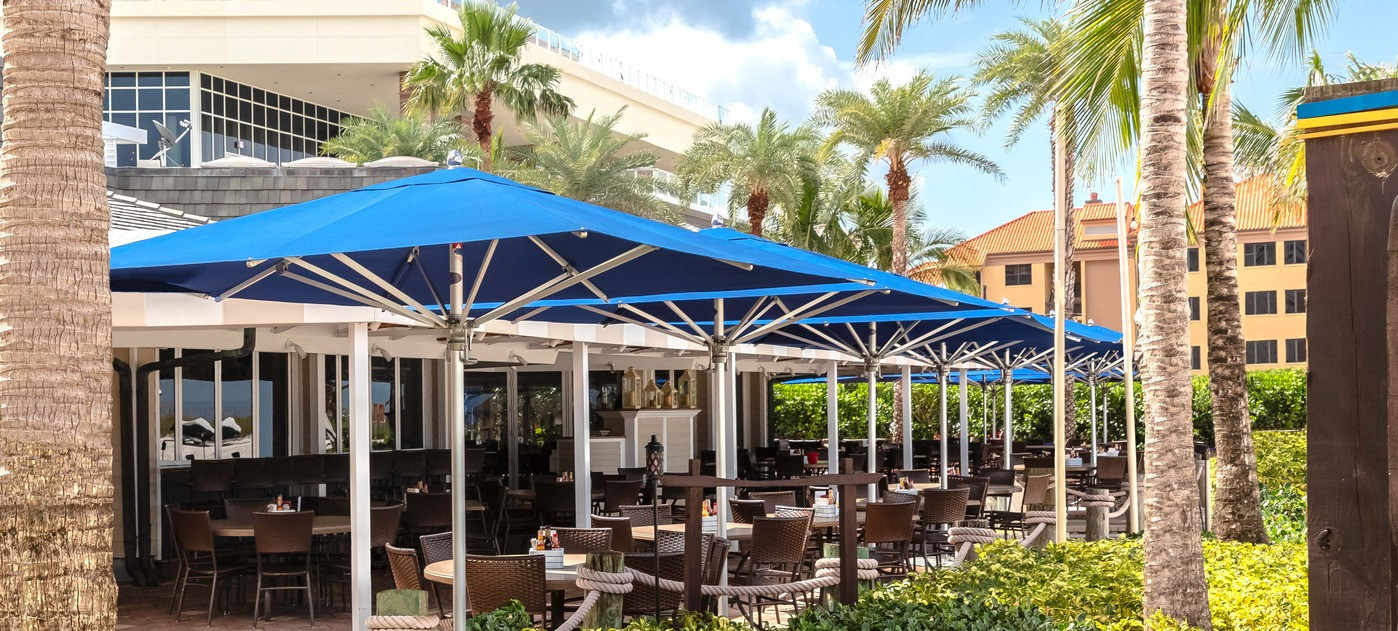

The Bay Master MAX Classic is flexible and lightweight. It stands up to high winds, blazing sun and salty coastal air. It does not rust or corrode, so it suits beach concessions, restaurants and pools.

You can choose a 300 x 300 or 400 x 400 cm square or an R 425 cm octagon. The mast is 60 mm and you open the parasol by hand with a counter balanced lift and telescoping mast. For the evening order 4 built-in LED lights.

Dimensions
