Ocean Master MAX Bolero up to R 3.65 m

Technical data

• frame and mast: aluminium, OM MAX double hub, double reinforced strut connectors, mast Ø 60 mm
• standard features: non-vented canopy, scalloped accent cap in the canopy colour (contrasting on request), security stem, polished titanium hub, polished MAX acorn finial, market cut profile. The parasol may not close over a table.
• sizes:
  • OMXBOL9.0RND: R 275 cm, round, mast Ø 60 mm, minimum anchor weight 90 kg, cover CX2
  • OMXBOL12.0RND: R 365 cm, round, mast Ø 60 mm, minimum anchor weight 127 kg, cover CX4
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) adds 20 % of the size price. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea): +€ 725. Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java): +€ 1,780.
• lift: the EasyDrive crank lift is included on both sizes.
• lighting and heating: not available for this model.
• ordered separately (accessories):
  • custom protective cover CX2 or CX4, € 795 (the code is listed with each size)
  • anchors and mounts:
    • Aluma-Crete round anchor with lift handles (ACF): from € 905
    • G-MAX Plate square anchor (GV): from € 805
    • Full Aluma-Crete cube anchor (AGSP): from € 2,650
    • Full cube cushion for the cube anchor (AGSP-FCC): from € 2,580
    • MAX in-ground security mount for new concrete (IGSM): € 735
    • MAX stainless steel surface anchor for existing concrete (MAXPLATE): € 985
    • MAX stainless steel flush mount for dry and new concrete (OMXSSFM): € 1,130
    • MAX stainless steel flush mount for wood decks (OMXSSFM(D)): € 1,360
    • MAX stainless steel extension (BASE-EXT): € 825
    • MAX aluminium extension cover (BASE-EXTCV): from € 775
    • Grounding lug (GROUNDINGLUG): € 50
  • replacement canopy: from € 2,740

Extras on request
longer mast (10, 20 or 30 cm): € 380, not with heating and lighting
contrasting pockets: € 315
contrasting binding on the canopy: € 310
contrasting welt, not with a double-sided canopy: € 525
15 cm scalloped accent border on the canopy: € 755
fishtail profile with canopy binding (matching or contrasting): € 310
valance (straight, scalloped, classic, modern or sea scallop): € 755
double-sided canopy: same price as the replacement canopy, from € 2,740
logo printing on the canopy: project set up from € 595 (1 colour, logo up to 90 cm), printing from € 45 per canopy panel, conversion of the logo to vector artwork € 285
canopy cleaning: € 30/m², net price, shipping not included
your own fabric or a fabric outside the Tuuci range (COM): € 195 per fabric and order, net price
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (+20 %)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (+20 %)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (+20 %)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Softscape, printed canopy pattern
Tuuci Softscape is a pattern printed on the canopy. You choose from 23 patterns in 6 themes. Tropical: Belize, Tulum, Tahiti, Kauai. Florals: Adelaide, Lucia, Primrose, Kaleidoscope. Maritime: Gulfstream, Reef, Dockside. Whimsical: Wonder, Tamarin, Plume, Fable. Wildlife: Savanna, Prowl, Safari. Abstract: Web, Doodle, Ripple, Trace, Prism. You get it in 1 or 2 colours, with or without a valance. The surcharge depends on the size, from € 490 to € 1,790. In the shop you select it with the Polished Titanium frame and level C fabric. We quote other combinations on request.

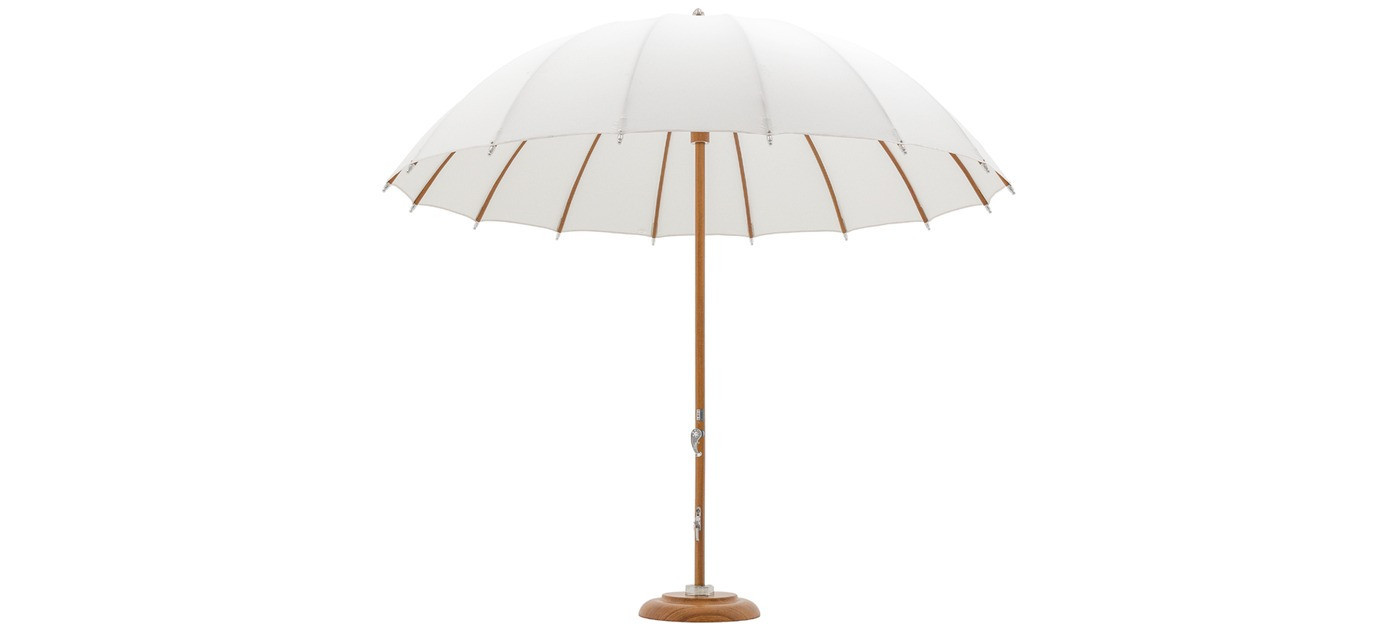

Ocean Master MAX Bolero

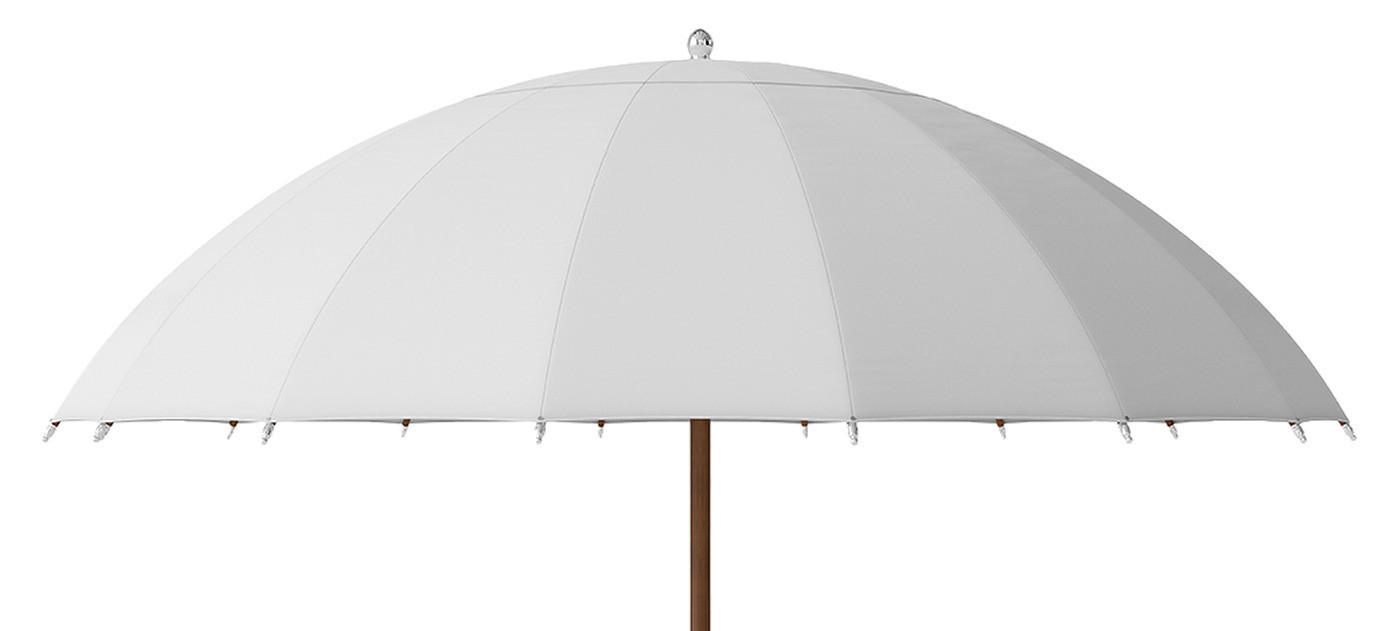

Bolero blends Mediterranean elegance with a sculptural form. The canopy is domed. The struts cascade down, and a scalloped accent cap sits on top.

The canopy has no wind vent. The struts have double reinforced connectors and sit in the OM MAX double hub. The mast is 60 mm on both sizes. You open the canopy with the EasyDrive crank lift.

You choose a round canopy of R 275 cm or R 365 cm. The parasol may not close over a table.
