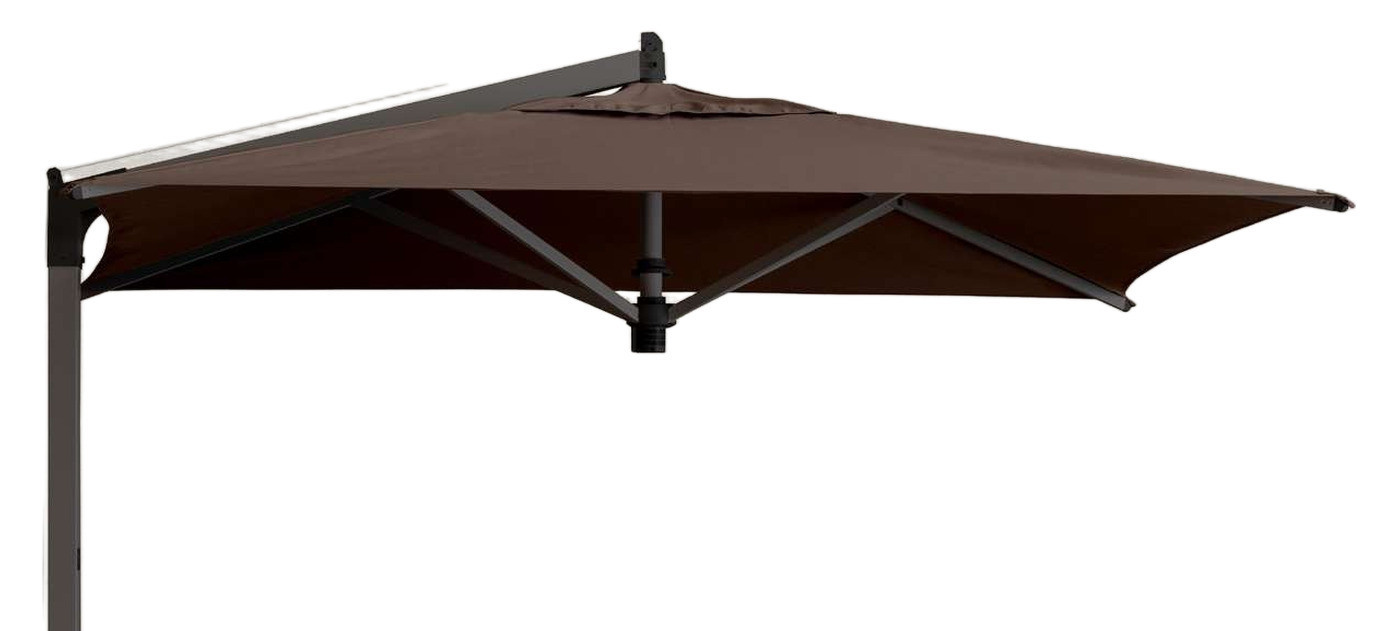

Rio umbrella max. 2.6 x 2.6 m

Video presentation

Fabric type

Our goal is to produce the best quality products. For this reason we use only prime grade materials and the best fabrics for outdoor use.

Olefim fabric - high quality for the price (190 g/m²)
The fibres are solution dyed, so the colours stay fast and stable. The fabric gives excellent sun protection and can be recycled. It is water-repellent, resists stains and is highly resistant to UV degradation. UPF 80 (UV protection factor).

Solution dyed acrylic fabric (Sunbrella) - the best coloured fabric for outdoor use (280 g/m²)
The colour is added while the fibre is produced. This gives the fabric high resistance to UV rays, even in aggressive environments with chlorine or salt. The colours do not fade and stay stable for a long time, and the fabric also resists moisture. A special treatment makes it water-repellent and protects it from stains. Regular brushing keeps its original look. UPF 50+ (UV protection factor).

Solution dyed acrylic fabric - special colours (Sunbrella) - the best coloured fabric for outdoor use (280 g/m²)
The colour is added while the fibre is produced. This gives the fabric high resistance to UV rays, even in aggressive environments with chlorine or salt. The colours do not fade and stay stable for a long time, and the fabric also resists moisture. A special treatment makes it water-repellent and protects it from stains. Regular brushing keeps its original look. UPF 50+ (UV protection factor).

Frame colours

Rio comes in two frame colours: powder coated aluminium in graphite (GRAF) or white (BIAN). Both cost the same. The colours in the picture may differ from the real ones.

Specification

• Pole: 6.4 x 6.4 cm, frame in powder coated aluminium in graphite (GRAF) or white (BIAN). Screws: stainless steel.
• Ribs: you can replace each rib on its own, without taking the umbrella apart. The canopy comes off for maintenance or replacement.
• Opening: with a pulley.
• Rotation: 360° around the base.
• Shapes and sizes: square 200 x 200 cm and 260 x 260 cm, rectangular 200 x 300 cm with the pole on the 3 m side, hexagonal Ø 300 cm.
• Canopy: Olefim or solution dyed acrylic, without flounce, with vent.
• The base is sold separately. Minimum recommended ballast on the base: 120 kg.
• Packaging: 1 package, 13.3 kg, 0.12 m³.
• Bases to choose: freestanding steel base FE A3, freestanding base ALU 1 with or without cover, wall mount base, ground insert base with 13 cm extension and surface mount plate 30 x 30 cm with 13 cm extension. Fix the plate with 4 chemical anchors, not supplied. Fix the wall mount base only to a solid concrete wall, with 4 chemical anchors, not supplied. Also available as accessories: freestanding base ALU 3 and freestanding base ALU 4 80 x 80 cm with or without wheels.
• Ballast: base FE A3 takes 8 concrete tiles 40 x 40 cm, 8 tiles 46 x 46 cm or 6 concrete or iron tiles 50 x 50 cm. Base ALU 1 or ALU 3 takes 6 tiles 50 x 50 cm, base ALU 4 takes 8 concrete tiles 40 x 40 cm. You can also use a decorative vase as ballast, and the cube works as a seat.
• Heater: 1 heater, 2000 W, 220 V, IPX5. It heats about 12 to 15 m².
• LED lamp Round: 3 W, 280 lumen, about 8 hours of use, lithium battery charged by USB, fits on the lower hub.
• Protective cover: grey Airfim with aluminium ribs, 194 EUR excl. VAT. You fit it on the mounted and closed umbrella.

Dimensions

The table shows the measures in cm for every size, and you find the letters on the base drawings below it.
