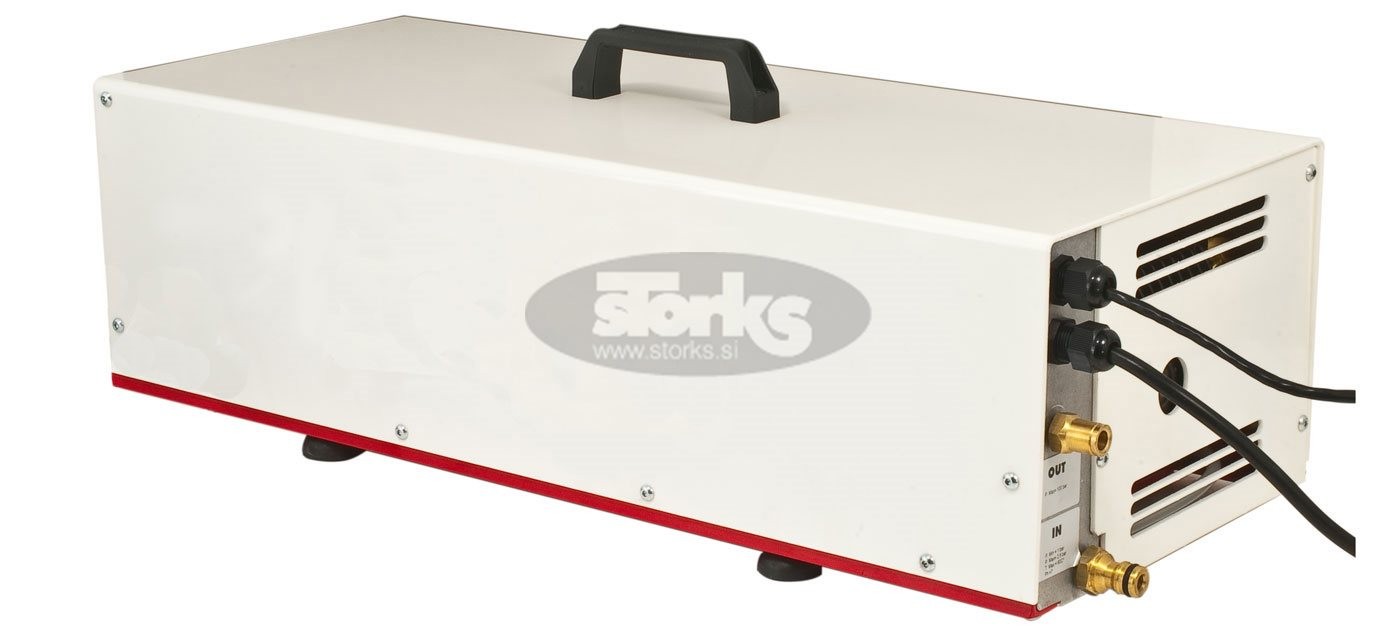

Misting system SCI KIT 8 L/min with iControl and 160 nozzles
KIT Features:
iControl allows control over the index calculated between temperature and humidity, enabling automatic control of the pump's operation. Electronic pressure control prevents the pump from starting when water is absent. It includes a timer.
The inlet solenoid valve stops the water supply when the pump is not running.
The outlet solenoid valve halts the pump if it cannot reach the specified pressure, preventing water leakage.
Transmission with Joints and 4 ball bearings.
Ceramic pistons and brass head.
KIT includes:
Nozzles 20 μm with anti-drop feature: 160
Nozzle spacing: 100 cm
Total length of nozzle line: 160 m
Distance from the pump to the first nozzle: 20 m
Pipe stands: 160
Total tube length: 180 m
We recommend adding the Pump Connection KIT and a 1 μm Filter.
Pump features:
Power: 1500 W
Pressure: 0-100 bar
Weight: 24.5 kg
Dimensions: 530 x 232 x 196 mm
Supply pressure: 1 - 2.5 bar
Voltage: 230V~ 50Hz
Operating temperature: 0-50°C
IP Protection: IPX5
We recommend adding the Pump Connection KIT and a 1 μm Filter.
