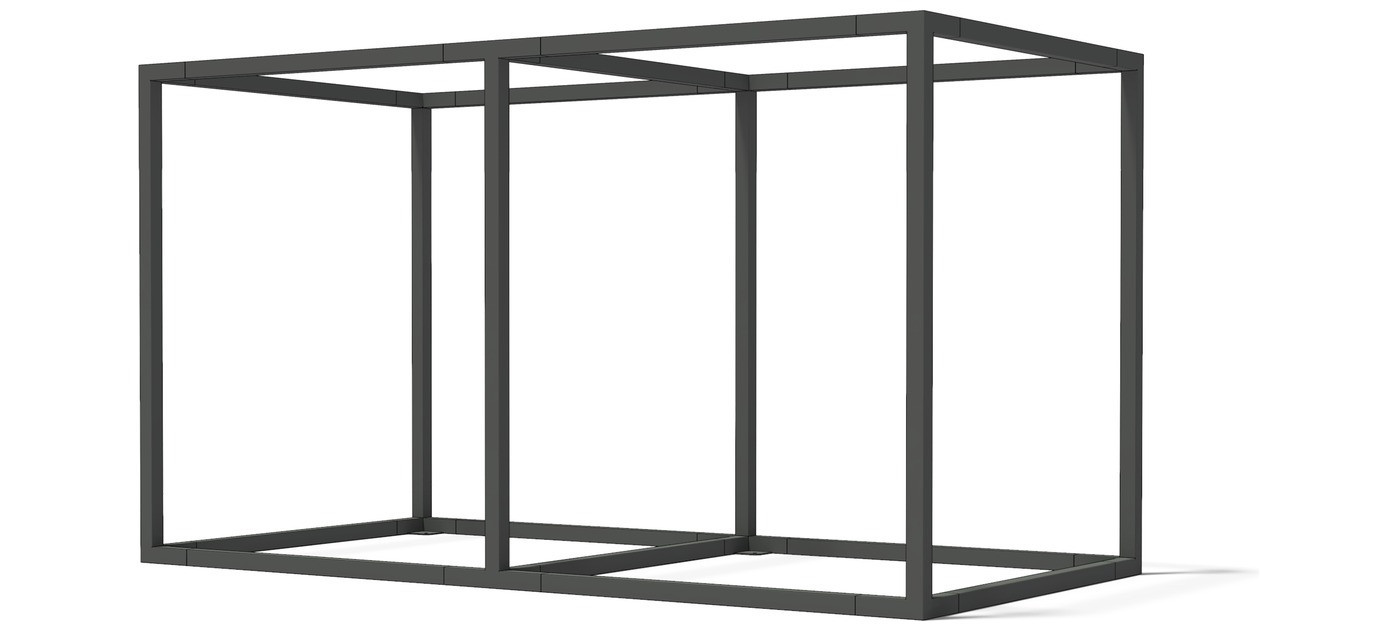

Egoe LEVA double cube, steel
The all-steel double cube covers a 425 x 216.5 cm plan. The structure is built from thin-walled 80 x 80 mm steel bars with zinc protection and powder coating, with stainless steel fasteners. The module is dismountable and made for public space and long outdoor service.
structure: steel, zinc coated and powder coated, dismountable
material: steel
structure colour: on request, 22 standard RAL shades
dimensions: 425 x 216.5 x 240 cm
weight: 283.6 kg
design: Egoé studio
item code: LEV2120-002000
Technical data
- dimensions: 425 x 216.5 x 240 cm (4250 x 2165 x 2400 mm)
- weight: 283.6 kg
- structure: steel, zinc coated and powder coated, dismountable
- material: steel
- structure colour: on request, 22 standard RAL shades (RAL 9010, 1013, 1021, 2008, 3020, 3016, 3003, 3012, 5011, 5019, 5024, 6027, 6019, 6010, 6007, 7022, 7006, 7032, 7035, 7016, 9005, 9007)
- design: Egoé studio
- item code: LEV2120-002000
- made by Egoé, Czech Republic
About the LEVA system
LEVA is a modular system built from a basic cube and accessories. At home it becomes a children's playroom with a climbing wall, a resting corner with a hanging bed, a dining area of several joined cubes or an outdoor kitchen with herb planters. Companies use it for outdoor offices, festival pergolas, exhibition spaces and cinemas. The structural beams are larch or acacia, the steel joints are galvanised and powder coated, and the textiles and outdoor parts resist weather and need little maintenance. The cubes are the load-bearing part of the system and carry every other module.
See the whole system in the Egoé LEVA category and the other modules of this group under Cubes.
