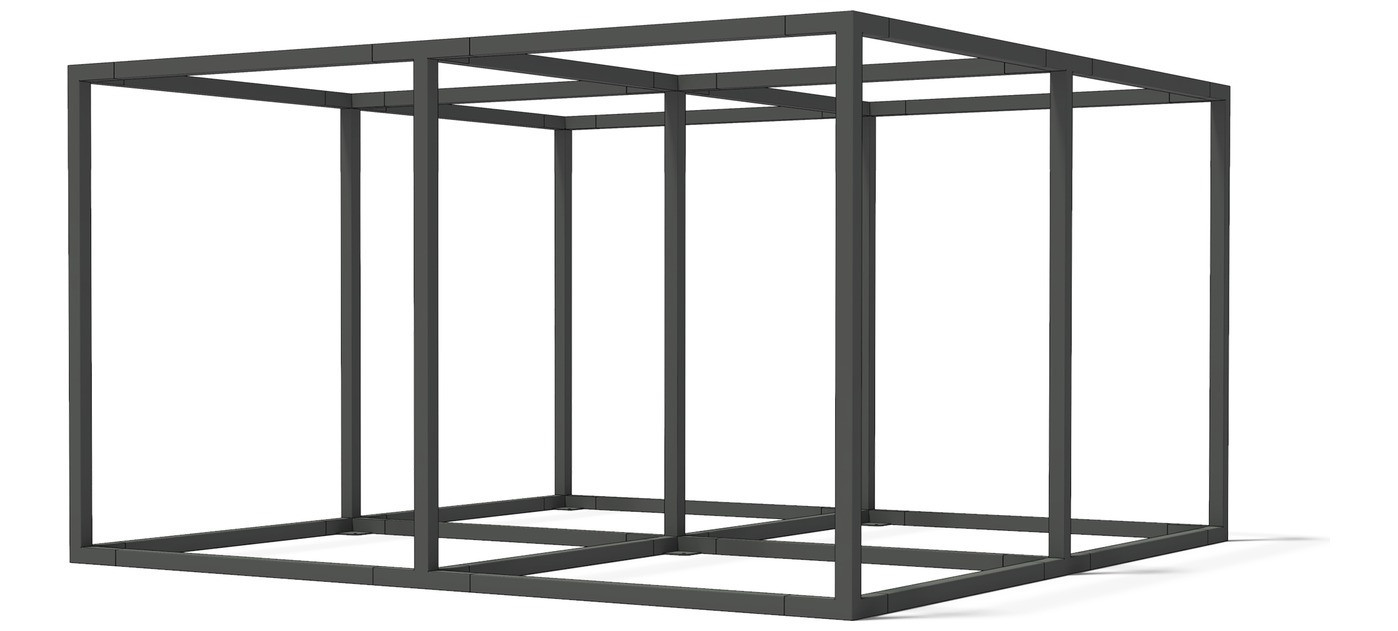

Egoe LEVA quadruple cube, steel
The all-steel quadruple cube covers a 425 x 425 cm square. The structure is built from thin-walled 80 x 80 mm steel bars with zinc protection and powder coating. The module is dismountable and made for public and commercial installations.
structure: steel, zinc coated and powder coated, dismountable
material: steel
structure colour: 22 standard RAL shades
weight: 471 kg
design: Egoé studio
Technical data
- dimensions: 425 x 425 x 240 cm (4250 x 4250 x 2400 mm)
- weight: 471 kg
- structure: steel, zinc coated and powder coated, dismountable
- material: steel
- structure colour: 22 standard RAL shades, choose above (RAL 9010, 1013, 1021, 2008, 3020, 3016, 3003, 3012, 5011, 5019, 5024, 6027, 6019, 6010, 6007, 7022, 7006, 7032, 7035, 7016, 9005, 9007)
- design: Egoé studio
- item code: LEV2145-002000
- made by Egoé, Czech Republic
About the LEVA system
LEVA is a modular system built from a basic cube and accessories. At home it becomes a children's playroom with a climbing wall, a resting corner with a hanging bed, a dining area of several joined cubes or an outdoor kitchen with herb planters. Companies use it for outdoor offices, festival pergolas, exhibition spaces and cinemas. The structural beams are larch or acacia, the steel joints are galvanised and powder coated, and the textiles and outdoor parts resist weather and need little maintenance. The cubes are the load-bearing part of the system and carry every other module.
See the whole system in the Egoé LEVA category and the other modules of this group under Cubes.
Video
Colours and materials
structure colour
RAL 3016
RAL 3012
RAL 6019
RAL 6007
RAL 7032
RAL 9007Dimension drawing
