Egoe LEVA folding roof, Kortexin

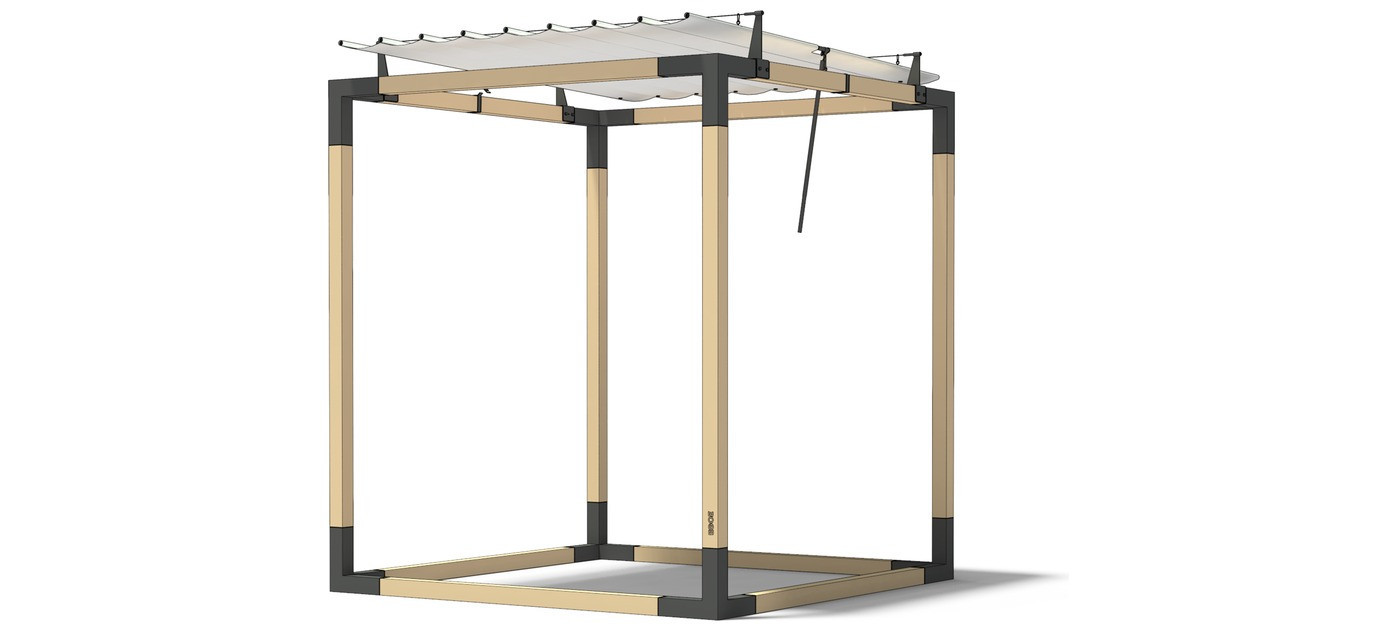

The folding roof is a canvas cover you spread out or fold away as needed. The canvas is water-resistant polyester reinforced with aluminium alloy poles, the tension brackets are zinc coated and powder coated, and the tension wire is stainless steel. The roof weighs 14 kg, so one person can move it.
structure: aluminium alloy poles, zinc coated and powder coated steel tension brackets, stainless steel tension wire
material: water-resistant Kortexin polyester fabric
structure colour: on request, 22 standard RAL shades
dimensions: 231 x 194.7 cm
weight: 14 kg
height of the folded cover: 200 to 150 mm
design: Egoé studio
item code: LEV407-002000
Technical data
- dimensions: 231 x 194.7 cm (2310 x 1947 mm)
- weight: 14 kg
- structure: aluminium alloy poles, zinc coated and powder coated steel tension brackets, stainless steel tension wire
- material: water-resistant Kortexin polyester fabric
- structure colour: on request, 22 standard RAL shades (RAL 9010, 1013, 1021, 2008, 3020, 3016, 3003, 3012, 5011, 5019, 5024, 6027, 6019, 6010, 6007, 7022, 7006, 7032, 7035, 7016, 9005, 9007)
- height of the folded cover: 200 to 150 mm
- design: Egoé studio
- item code: LEV407-002000
- made by Egoé, Czech Republic
About the LEVA system
LEVA is a modular system built from a basic cube and accessories. At home it becomes a children's playroom with a climbing wall, a resting corner with a hanging bed, a dining area of several joined cubes or an outdoor kitchen with herb planters. Companies use it for outdoor offices, festival pergolas, exhibition spaces and cinemas. The structural beams are larch or acacia, the steel joints are galvanised and powder coated, and the textiles and outdoor parts resist weather and need little maintenance. The roofs cover a cube and decide how much sun and rain it lets through.
See the whole system in the Egoé LEVA category and the other modules of this group under Roofs.
