Roofs

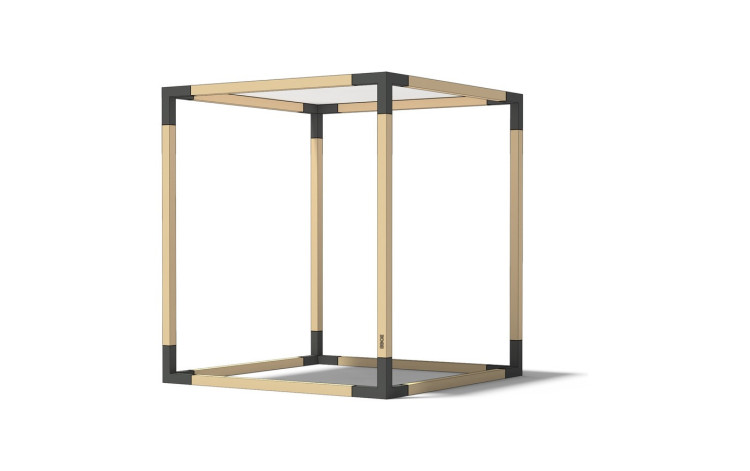

The shading mesh roof is the lightest cover for a LEVA module. It is made of SioLine outdoor mesh with stainless steel fittings and weighs 1.5 kg in total. The mesh holds back part of the sun and lets air through, so it stays cooler underneath.

structure: SioLine outdoor mesh, stainless steel fittings
material: SioLine outdoor mesh
dimensions: 205 x 205 cm
weight: 1.5 kg
design: Egoé studio
item code: LEV400-000000

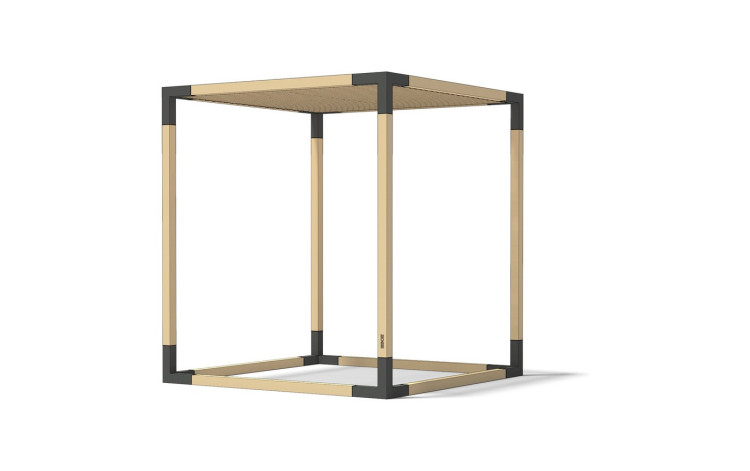

The wooden slat roof covers a LEVA module with a run of larch slats. The frame is powder-coated aluminium alloy and the fasteners are stainless steel. The slats cast shade and let air through, so the roof never feels closed.

structure: powder-coated aluminium alloy, stainless steel fasteners
material: larch
structure colour: on request, 22 standard RAL shades
dimensions: 192.9 x 206.1 x 8 cm
weight: 65.6 kg
design: Egoé studio
item code: LEV402-M12000

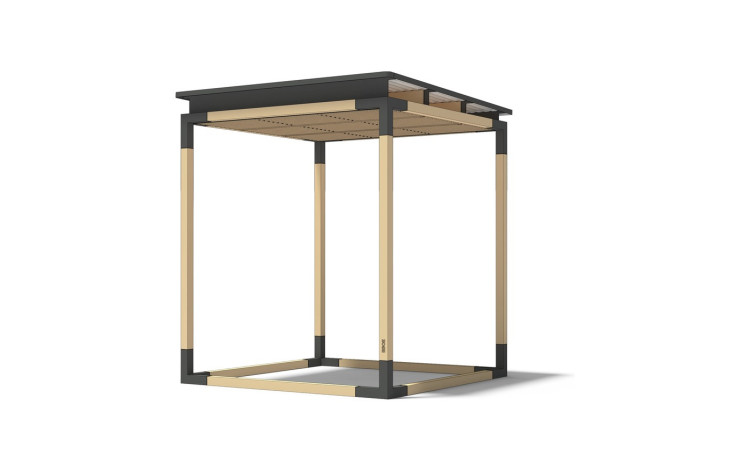

The solid roof closes a LEVA module against rain. The steel structure is zinc coated and powder coated, the cover is trapezoidal polycarbonate with UV protection, and a suspended ceiling of wooden slats runs underneath. The space below stays dry and bright.

structure: steel, zinc coated and powder coated, trapezoidal polycarbonate with UV protection, suspended ceiling of wooden slats
material: larch
structure colour: on request, 22 standard RAL shades
dimensions: 225 x 225 x 24.6 cm
weight: 107 kg
design: Egoé studio
item code: LEV403-M12000

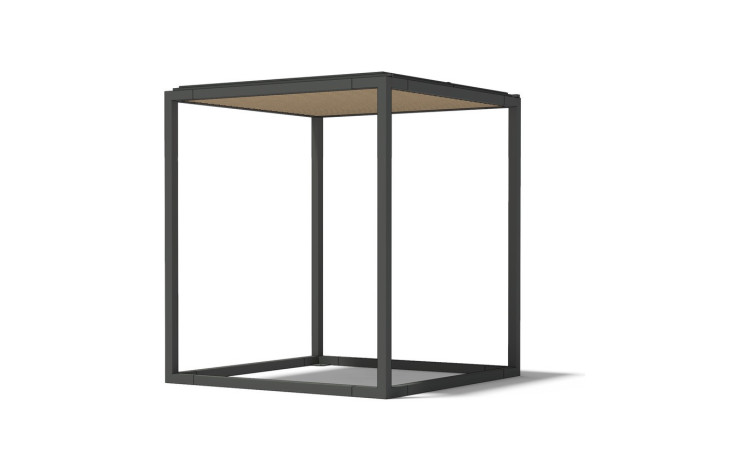

The green roof carries pre-grown stonecrop carpets in two powder-coated aluminium tubs, with a suspended ceiling of wooden slats underneath. The layer build-up includes a 30 mm retention board, a 100 g/m2 filter foil and an extensive roof substrate. The roof can only be placed on the all-steel structure.

structure: two powder-coated aluminium tubs with pre-grown green tiles, suspended ceiling of wooden slats
material: pre-grown green tiles, larch slats
structure colour: on request, 22 standard RAL shades
dimensions: 213 x 207 x 8 cm
weight: 400 kg
layer build-up: 30 mm retention board, 100 g/m2 filter foil, extensive roof substrate, pre-grown stonecrop carpet
restriction: the green roof only goes with the all-steel structure
design: Egoé studio
item code: LEV404-M02000

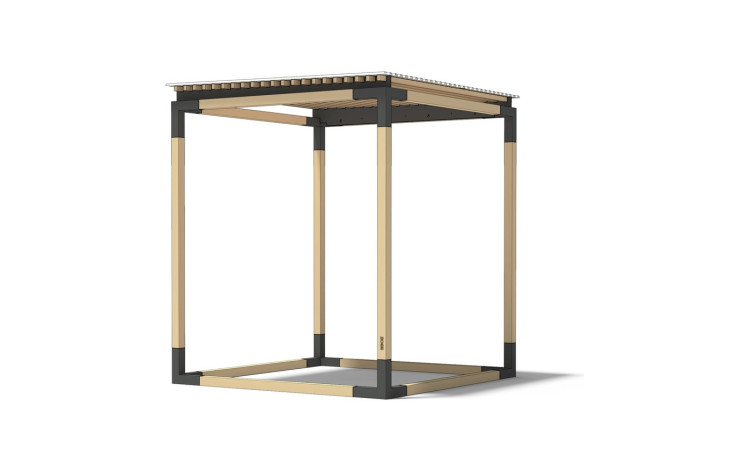

The SLUM solid roof covers one LEVA bay and drains to one side. The steel structure is zinc coated and powder coated, the cover is trapezoidal polycarbonate with UV protection, and a suspended ceiling of larch slats runs underneath. The roof measures 225.5 x 216.5 cm.

structure: steel, zinc coated and powder coated, trapezoidal polycarbonate with UV protection, suspended ceiling of wooden slats
material: larch
structure colour: on request, 22 standard RAL shades
dimensions: 225.5 x 216.5 x 22.6 cm
weight: 63 kg
design: Egoé studio
item code: LEV405-M12000

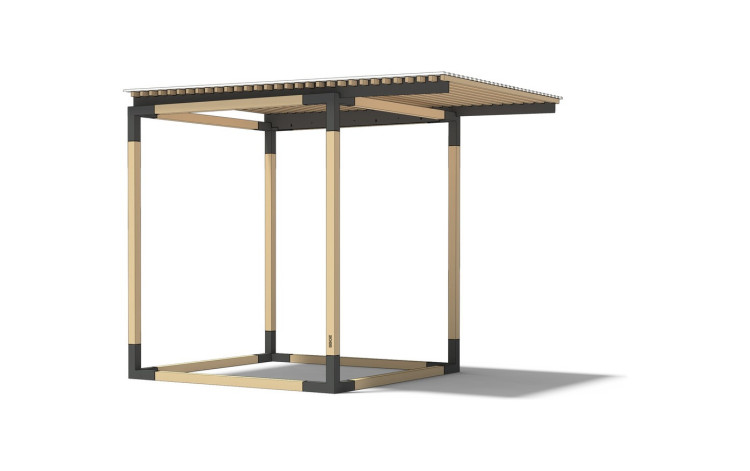

The SLUM+ extended solid roof reaches past the edge of the LEVA module and covers the strip in front of it as well. The steel structure is zinc coated and powder coated, the cover is trapezoidal polycarbonate with UV protection, and a suspended ceiling of larch slats runs underneath. The roof measures 225.3 x 315 cm.

structure: steel, zinc coated and powder coated, trapezoidal polycarbonate with UV protection, suspended ceiling of wooden slats
material: larch
structure colour: on request, 22 standard RAL shades
dimensions: 225.3 x 315 x 22.6 cm
weight: 98 kg
design: Egoé studio
item code: LEV406-M12000

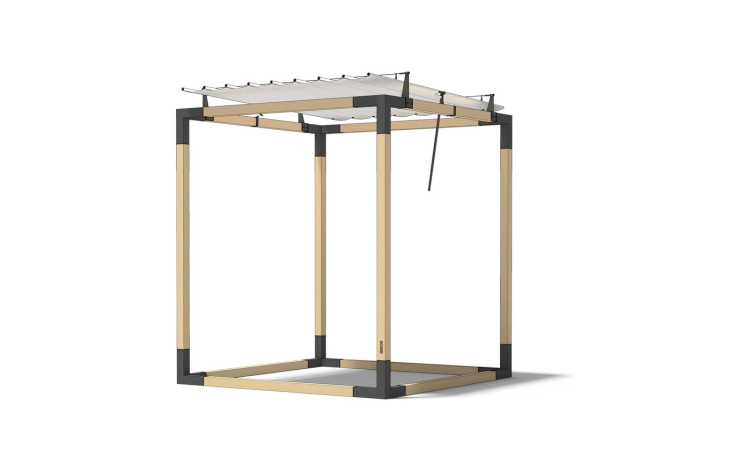

The folding roof is a canvas cover you spread out or fold away as needed. The canvas is water-resistant polyester reinforced with aluminium alloy poles, the tension brackets are zinc coated and powder coated, and the tension wire is stainless steel. The roof weighs 14 kg, so one person can move it.

structure: aluminium alloy poles, zinc coated and powder coated steel tension brackets, stainless steel tension wire
material: water-resistant Kortexin polyester fabric
structure colour: on request, 22 standard RAL shades
dimensions: 231 x 194.7 cm
weight: 14 kg
height of the folded cover: 200 to 150 mm
design: Egoé studio
item code: LEV407-002000

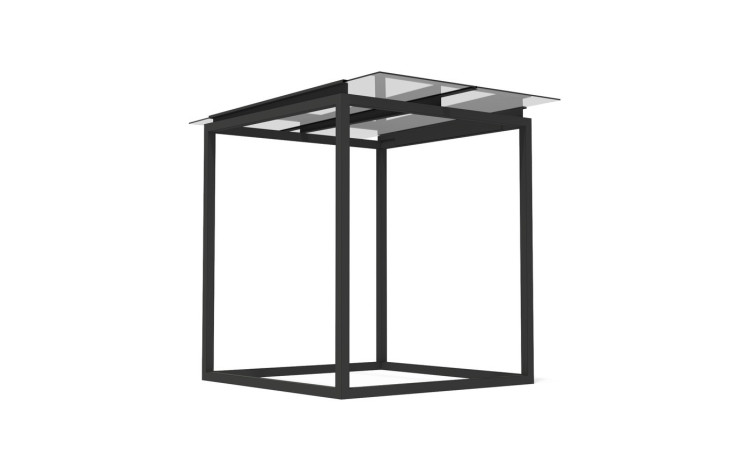

The glass roof lets daylight through and closes a LEVA module against rain. It combines tempered safety glass, a zinc coated and powder coated steel structure and rubber sealing strips. It is used in LEVA Office layouts, where the space below stays bright.

structure: steel, zinc coated and powder coated, rubber sealing strips
material: tempered safety glass
structure colour: on request, 22 standard RAL shades
dimensions: 297 x 208 cm
weight: 193 kg
design: Egoé studio
item code: LEV408-002400

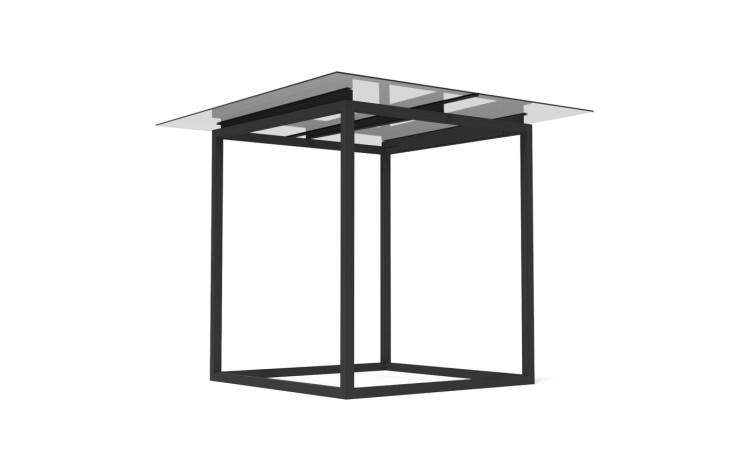

The glass roof with side overhang reaches past the edge of the LEVA module and covers the strip beside it. It combines tempered safety glass, a zinc coated and powder coated steel structure and rubber sealing strips. The overhang shelters an entrance or an outdoor bench from rain.

structure: steel, zinc coated and powder coated, rubber sealing strips
material: tempered safety glass
structure colour: on request, 22 standard RAL shades
dimensions: 297 x 295.5 cm
weight: 250 kg
design: Egoé studio
item code: LEV409-002400

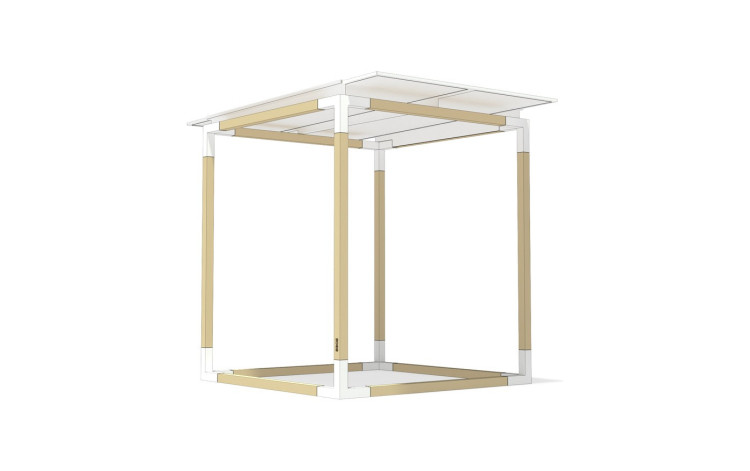

The sandwich panel roof closes a LEVA module with a solid, insulated surface. The FRP XPS panels are fibreglass reinforced and the steel structure is zinc coated and powder coated. Use it where the space has to stay closed in poor weather as well.

structure: steel, zinc coated and powder coated, FRP XPS sandwich panels with fibreglass reinforcement
material: sandwich panels
structure colour: on request, 22 standard RAL shades
dimensions: 210.5 x 297.6 x 13.4 cm
weight: 98 kg
design: Egoé studio
item code: LEV413-002000

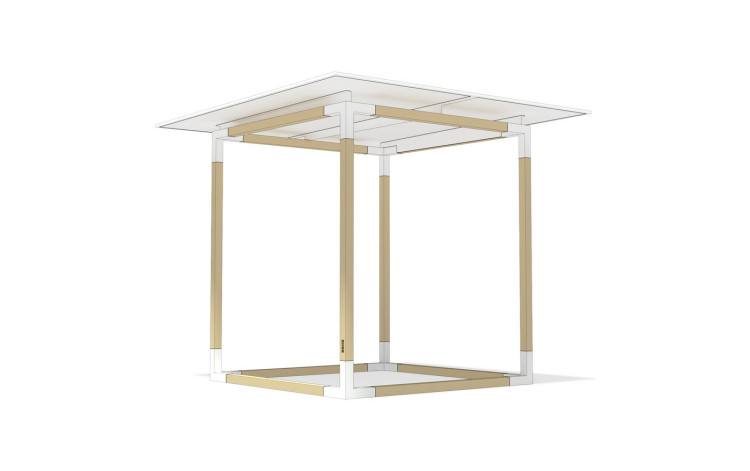

The sandwich panel roof with a lateral overhang covers a LEVA module and the strip beside it. The FRP XPS panels are fibreglass reinforced and the steel structure is zinc coated and powder coated. The overhang shelters an entrance or a work place next to the module.

structure: steel, zinc coated and powder coated, FRP XPS sandwich panels with fibreglass reinforcement
material: sandwich panels
structure colour: on request, 22 standard RAL shades
dimensions: 297.6 x 297.6 x 13.4 cm
weight: 105 kg
design: Egoé studio
item code: LEV414-002000
