Ocean Master M1 Manta up to 2.9 x 2.9 m

Technical data

• frame: mast Ø 38.1 or 51 mm (see sizes)
• standard features: non-vented canopy, fishtail profile with canopy binding (matching, contrasting on request), polished titanium hub, Triton finial.
• sizes:
  • OMM6.5SQ: 200 x 200 cm, square, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3
  • OMM7.5SQ: 225 x 225 cm, square, mast Ø 38.1 mm, minimum anchor weight 41 kg, cover SS3/CS3, EasyDrive crank available
  • OMM8.5SQ: 260 x 260 cm, square, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover SS3/CS3, EasyDrive crank available
  • OMMAS9.5SQ: 290 x 290 cm, square, Auto-Scope version, mast Ø 51 mm, minimum anchor weight 64 kg, cover SS4/CS4, EasyDrive crank available
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) adds 20 % of the size price. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours on tuuci.com.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea): +€ 190. Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java): +€ 445.
• lift: the Auto-LOC marine pulley lift is included. The EasyDrive crank lift costs +€ 190. The sizes list shows where it is available.
• lighting and heating: not available for this model.
• mounting: Auto-Scope sizes need a 51 mm security sleeve (upcharge on the anchors +€ 70).
• ordered separately (accessories):
  • protective covers (the code is listed with each size):
    • Custom protective cover CS3: € 510
    • Custom protective cover CS4: € 510
    • Standard protective cover, dark grey polyester SS3: € 155
    • Standard protective cover, dark grey polyester SS4: € 155
  • anchors and mounts:
    • Aluma-Crete round anchor with wheels (ACFW): from € 505
    • Aluma-Crete round anchor with lift handles (ACF): from € 820
    • G-Plate round anchor (GV): from € 595
    • G-Plate square anchor (GV): from € 685
    • Security sleeve deck mount (DECKMNT): from € 230
    • Flush mount for concrete, soil or sand (SSFMC): € 800
    • Stainless steel flush mount for existing concrete (FLUSHMT): € 530
    • Aluminium sand anchor (SANDANCHOR): € 150
    • Second rope hook (ROPEHOOK): € 85
    • Aluminium extension sleeve with hitch pin (EXTPOLE): € 100
    • Stainless steel extension sleeve with hitch pin (SSEXTPOLE): € 340
    • Stainless steel M1 center post for pools (SSCPMAST): € 680
    • Stainless steel pool flush mount with stainless extension (FLUSHMTSS): € 960
    • Stainless steel pool flush mount with containment cup (FLUSHMTSSCUP): € 1,650
    • Grounding lug (GROUNDINGLUG): € 40
  • replacement canopy:
    • Replacement canopy for Ocean Master M1 center post: from € 755

Extras on request
longer mast (10, 20 or 30 cm): € 125
M1 PLUS mast Ø 51 mm: € 95 (included on the Auto-Scope sizes), needs a 51 mm stainless steel security sleeve (upcharge € 70)
contrasting binding on the canopy: € 115
15 cm accent border on the canopy: € 250
15 cm cord fringe: € 545
logo printing on the canopy: project set up from € 535 (1 colour, logo up to 90 cm), printing from € 35 per canopy panel, conversion of the logo to vector artwork € 260
canopy cleaning: € 25/m², net price, shipping not included
your own fabric or a fabric outside the Tuuci range (COM): € 175 per fabric and order, net price
Prices exclude VAT.

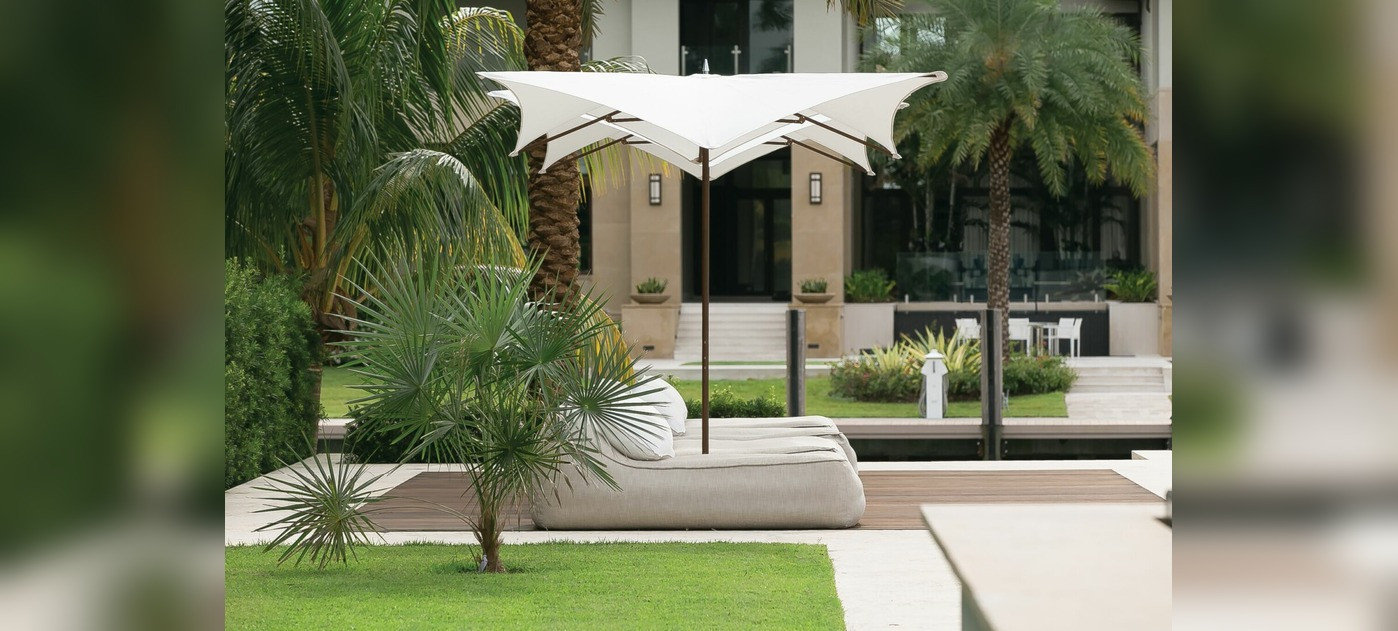

Ocean Master M1 Manta
The Manta takes its cue from the flight of the manta ray. The gentle, sweeping lines of the canopy show grace, strength and beauty. The canopy has no wind vent and comes with a fishtail profile with binding.

You can choose from 4 square sizes, from 200 x 200 to 290 x 290 cm. All open with the Auto-LOC marine pulley lift, the three larger ones also come with the EasyDrive crank lift. The largest size is an Auto-Scope version with a 51 mm mast. For larger areas choose the MAX collection.
