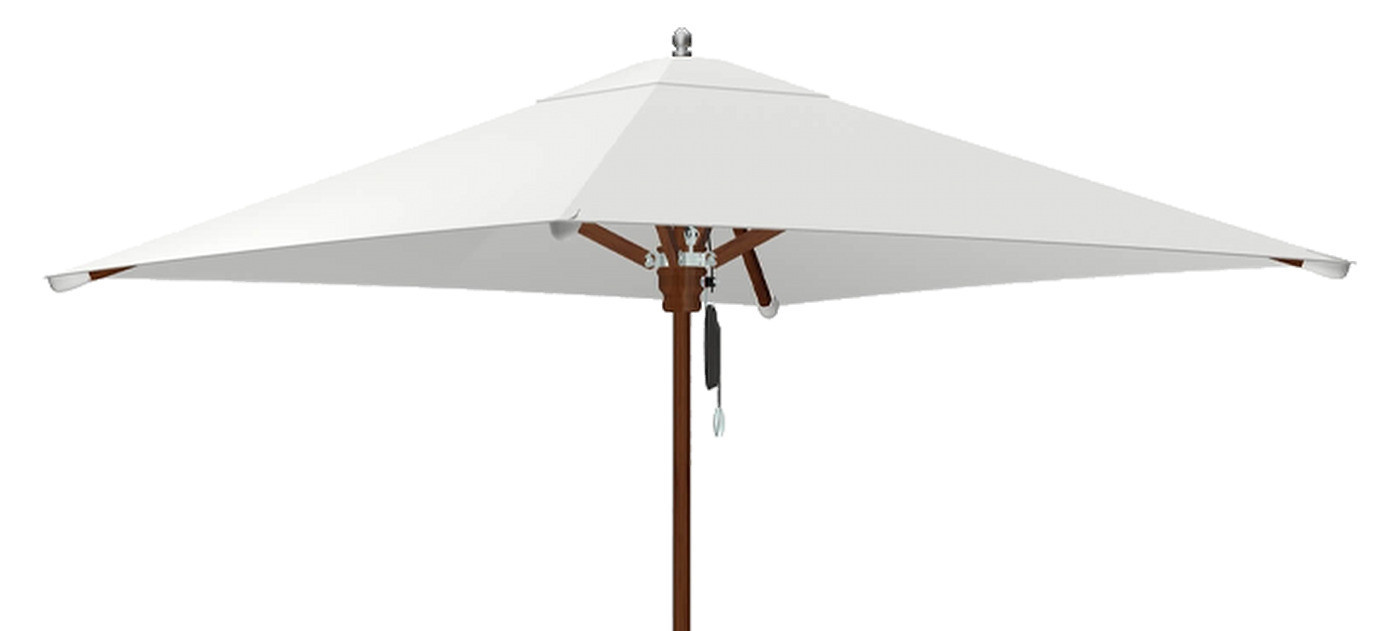

Bay Master M1 Maritime Hardwood up to R 2.75 m or 2 x 2 m

Name: Bay Master M1 Maritime Hardwood up to R 2.75 m or 2 x 2 m
Brand: Tuuci
SKU: MS
Price: 1535.00 EUR
Availability: InStock

Bay Master M1 Maritime Hardwood has a hardwood mast and a solid hardwood hub. It handles windy tropical conditions. It comes in 3 sizes, from 200 x 200 cm to R 275 cm.

frame: hardwood, mast Ø 47.6 mm, solid hardwood hub
lift: Auto-LOC marine pulley lift
sizes: square 200 x 200 cm, octagon R 275 cm, hexagon R 260 cm
frame colours: natural wood
fabric: Comfort CXT or Light LXT level B, Marine MXT level C, Premier PXT level E
code: MS

Description

Technical data

frame: long-grain hardwood mast, Ø 47.6 mm. Stainless steel non-expansion sleeves stop the mast from swelling.
standard features: solid maritime hardwood hub with stainless steel banded bracket system, tumbled leather and linseed oil finish, single wind vent in the canopy colour (contrasting on request), market cut profile, brushed acorn finial.
sizes:
- MS6.5SQ: 200 x 200 cm, square, mast Ø 47.6 mm, minimum anchor weight 41 kg, cover SS3/CS3
- MS9.0OCT: R 275 cm, octagon, mast Ø 47.6 mm, minimum anchor weight 48 kg, cover SS3/CS3
- MS8.5HEX: R 260 cm, hexagon, mast Ø 47.6 mm, minimum anchor weight 48 kg, cover SS3/CS3
fabric: the Comfort CXT and Light LXT series (level B) are included. All Marine MXT series (level C) cost extra, Premier PXT (level E) costs extra. The surcharge does not apply to frame colour or lift. You find the fabric colours below.
finish: natural wood (Natural). The price list shows no other finish.
lift: the Auto-LOC marine pulley lift is included. The double pulley with pin lift costs less. The Manual Lift System costs less.
lighting and heating: not available for this model.
mounting: Maritime Hardwood is only available with the 51 mm stainless steel security sleeve deck mount (DECKMNT, 51 mm sleeve at extra cost).
ordered separately (accessories):
- protective covers (the code is listed with each size):
  - Custom protective cover CS3
  - Standard protective cover, dark grey polyester SS3
- anchors and mounts:
  - Aluma-Crete round anchor with wheels (ACFW)
  - Aluma-Crete round anchor with lift handles (ACF)
  - G-Plate round anchor (GV)
  - G-Plate square anchor (GV)
  - Security sleeve deck mount (DECKMNT)
  - Flush mount for concrete, soil or sand (SSFMC)
  - Stainless steel flush mount for existing concrete (FLUSHMT)
  - Aluminium sand anchor (SANDANCHOR)
  - Second rope hook (ROPEHOOK)
  - Aluminium extension sleeve with hitch pin (EXTPOLE)
  - Stainless steel extension sleeve with hitch pin (SSEXTPOLE)

Extras on request
Venice finial instead of the acorn
valance (straight, scalloped, classic or modern Roman)
double wind vent (not on the square)
contrasting binding on canopy and vent
contrasting welt
logo printing on the canopy: project set up (1 colour, logo up to 90 cm), printing per canopy panel, conversion of the logo to vector artwork
canopy cleaning, shipping not included
your own fabric or a fabric outside the Tuuci range (COM)
Prices exclude VAT.

Fabrics

Comfort CXT 8000, price level B (included)
An acrylic fabric for smaller parasols where the strength of a marine grade fabric is not needed. It also suits furniture, so you can match canopies and upholstery. The hand-tufted blossoms of the Ocean Master MAX Bolero are made from it too.

Light LXT 7700, price level B (included)
A lighter alternative to the MXT 9700 series. The woven polyester fabric suits smaller parasols.

Marine MXT 9000-9600, price level C (at extra cost)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (at extra cost)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (at extra cost)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (at extra cost)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (at extra cost)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Bay Master M1 Maritime Hardwood
The Maritime Hardwood matches old-world craftsmanship with modern corrosion-proof materials. Luxury resorts around the world choose it because it handles windy tropical conditions. Stainless steel non-expansion sleeves stop the hardwood mast from swelling. The ribs flex in gusts instead of breaking.

It comes in 3 sizes: a 200 x 200 cm square, an R 275 cm octagon and an R 260 cm hexagon. The mast is 47.6 mm. You mount the parasol only on the 51 mm security sleeve deck mount.
