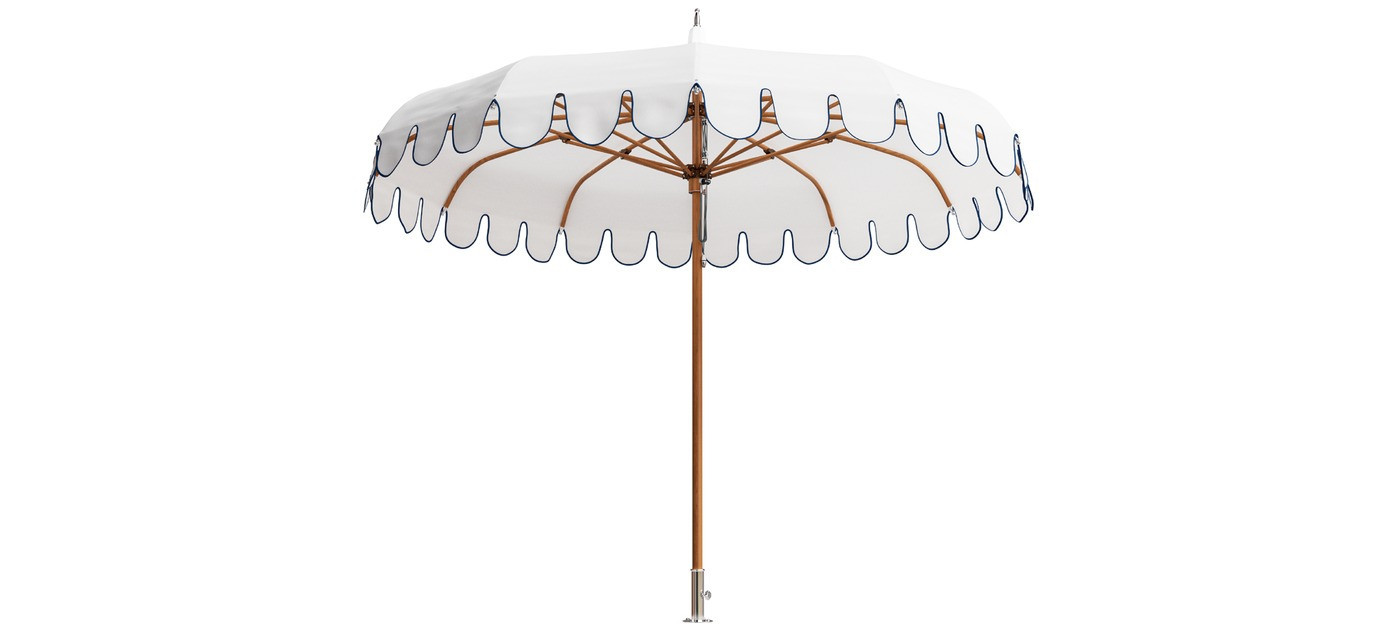

Ocean Master M1 Voilare up to R 3.4 m

Technical data

• frame: mast Ø 38.1 or 51 mm (see sizes), self-tensioning gas-piston system (patent pending)
• standard features: non-vented canopy, top cap in the canopy colour (contrasting on request), Sea Scallop valance with binding (matching, contrasting on request), polished titanium hub, Venice finial.
• sizes:
  • OMM1V8.5RND: R 260 cm, round, mast Ø 38.1 mm, minimum anchor weight 48 kg, cover CV3
  • OMM1V11.0RND: R 340 cm, round, mast Ø 51 mm, minimum anchor weight 64 kg, cover CV3
• fabric: all Marine MXT series (level C) are included. Premier PXT (level E) adds 20 % of the size price. The surcharge does not apply to frame colour, lift or lighting. You find the fabric colours below.
• frame colours: Polished Titanium (standard). Powder coat, 8 colours (Silver Sand, Glacier White, Sandbar, Oyster, Night Fog, Espresso, Graphite, Black Sea): +€ 210. Plantation Aluma-Teak, 6 finishes (Aspen White, Cypress, Driftwood, Weathered, Natural, Java): +€ 495.
• lift: the Auto-LOC marine pulley lift is included.
• lighting and heating: not available for this model.
• mounting: the R 340 cm size has a 51 mm mast and needs a 51 mm security sleeve (upcharge on the anchors +€ 80).
• ordered separately (accessories):
  • custom protective cover CV3: € 565
  • anchors and mounts:
    • Aluma-Crete round anchor with wheels (ACFW): from € 560
    • Aluma-Crete round anchor with lift handles (ACF): from € 905
    • G-Plate round anchor (GV): from € 660
    • G-Plate square anchor (GV): from € 755
    • Security sleeve deck mount (DECKMNT): from € 255
    • Flush mount for concrete, soil or sand (SSFMC): € 880
    • Stainless steel flush mount for existing concrete (FLUSHMT): € 585
    • Aluminium sand anchor (SANDANCHOR): € 170
    • Second rope hook (ROPEHOOK): € 95
    • Aluminium extension sleeve with hitch pin (EXTPOLE): € 115
    • Stainless steel extension sleeve with hitch pin (SSEXTPOLE): € 375
    • Stainless steel M1 center post for pools (SSCPMAST): € 750
    • Stainless steel pool flush mount with stainless extension (FLUSHMTSS): € 1,060
    • Stainless steel pool flush mount with containment cup (FLUSHMTSSCUP): € 1,815
    • Grounding lug (GROUNDINGLUG): € 50
  • replacement canopy: from € 1,680

Extras on request
longer mast (10, 20 or 30 cm): € 140
M1 PLUS mast Ø 51 mm on R 260 cm: € 105 (included on R 340 cm), needs a 51 mm stainless steel security sleeve (upcharge € 80)
24 tassels: € 1,010
contrasting welt, not with a double-sided canopy: € 345
alternating panels: € 445
double-sided canopy: same price as the replacement canopy, from € 1,680
logo printing on the canopy: project set up from € 595 (1 colour, logo up to 90 cm), printing from € 45 per canopy panel, conversion of the logo to vector artwork € 285
canopy cleaning: € 30/m², net price, shipping not included
your own fabric or a fabric outside the Tuuci range (COM): € 195 per fabric and order, net price
Prices exclude VAT.

Fabrics

Marine MXT 9000-9600, price level C (included)
For commercial and private use, in extreme and moderate conditions. This acrylic series has the largest choice of colours and the longest warranty, and you get it on most products. A fishtail profile needs flat binding. A valance needs braid binding.

Marine MXT 9800, price level C (included)
A two-ply polyester fabric with a resin coating. The canopy is two-tone as standard: white underneath, the coloured coating on top. Often used on the Ocean Master M1 Manta.

Marine MXT 9700, price level C (included)
A polyester fabric with a good balance of strength and weight. Tuuci chose it for the Ocean Master MEGA MAX, and you get it on many other collections too.

Premier PXT 10000, price level E (+20 %)
The most durable textile in the range, made for constant extreme exposure. It repels water very well and has very high tensile strength. It is a standard canopy option on the Ocean Master MAX F-1.

Premier PXT 10000-92, price level E (+20 %)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 4 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Premier PXT 10000-86, price level E (+20 %)
A very strong fabric with an open weave. It suits places with strong wind where you do not need 100 % shade and water resistance. The open weave ratio is 14 %. It is a standard canopy option on the Ocean Master MAX F-1 and is recommended for the Stingray.

Softscape, printed canopy pattern
Tuuci Softscape is a pattern printed on the canopy. You choose from 23 patterns in 6 themes. Tropical: Belize, Tulum, Tahiti, Kauai. Florals: Adelaide, Lucia, Primrose, Kaleidoscope. Maritime: Gulfstream, Reef, Dockside. Whimsical: Wonder, Tamarin, Plume, Fable. Wildlife: Savanna, Prowl, Safari. Abstract: Web, Doodle, Ripple, Trace, Prism. You get it in 1 or 2 colours, with a valance. The surcharge depends on the size, from € 610 to € 1,490. In the shop you select it with the Polished Titanium frame and level C fabric. We quote other combinations on request.

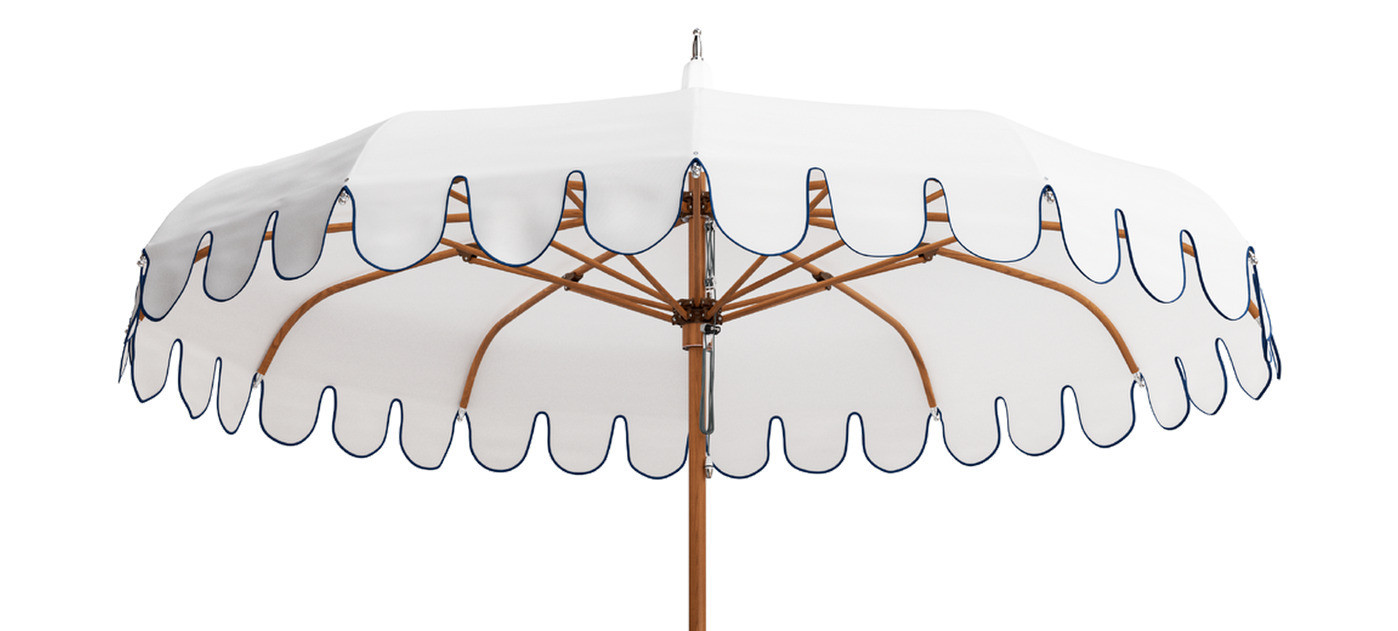

Ocean Master M1 Voilare
The M1 Voilare draws the eye with its refined silhouette and detailed frame. It creates a focal point in any outdoor setting. The sturdy structure and graceful lines show careful craftsmanship.

The look is old-world, the technology is modern. A self-tensioning gas-piston system (patent pending) keeps the canopy fitting well over the struts. The Sea Scallop valance with binding and the top cap are included. The canopy has no wind vent.

You choose a round canopy of R 260 cm or R 340 cm. You open it with the Auto-LOC marine pulley lift.
