Misting system SCI KIT 6 L/min with iControl and 120 nozzles
KIT features:
iControl provides control over the index calculated between temperature and humidity, enabling automatic control of the pump's operation. Electronic pressure control prevents the pump from starting when there is no water. It also includes a timer.
The inlet solenoid valve stops the water flow when the pump is not working.
The outlet solenoid valve stops the pump when it cannot reach the specified pressure, preventing water spillage.
Transmission with joints and 4 ball bearings.
Ceramic pistons and brass head.
KIT includes:
Nozzles 20 μm with anti-drop feature: 120
Nozzle spacing: 100 cm
Total length of the nozzle line: 120 m
Distance from the pump to the first nozzle: 20 m
Pipe stands: 120
Total length of the pipe: 140 m
We recommend adding the Pump Connection KIT and a 1 μm Filter.

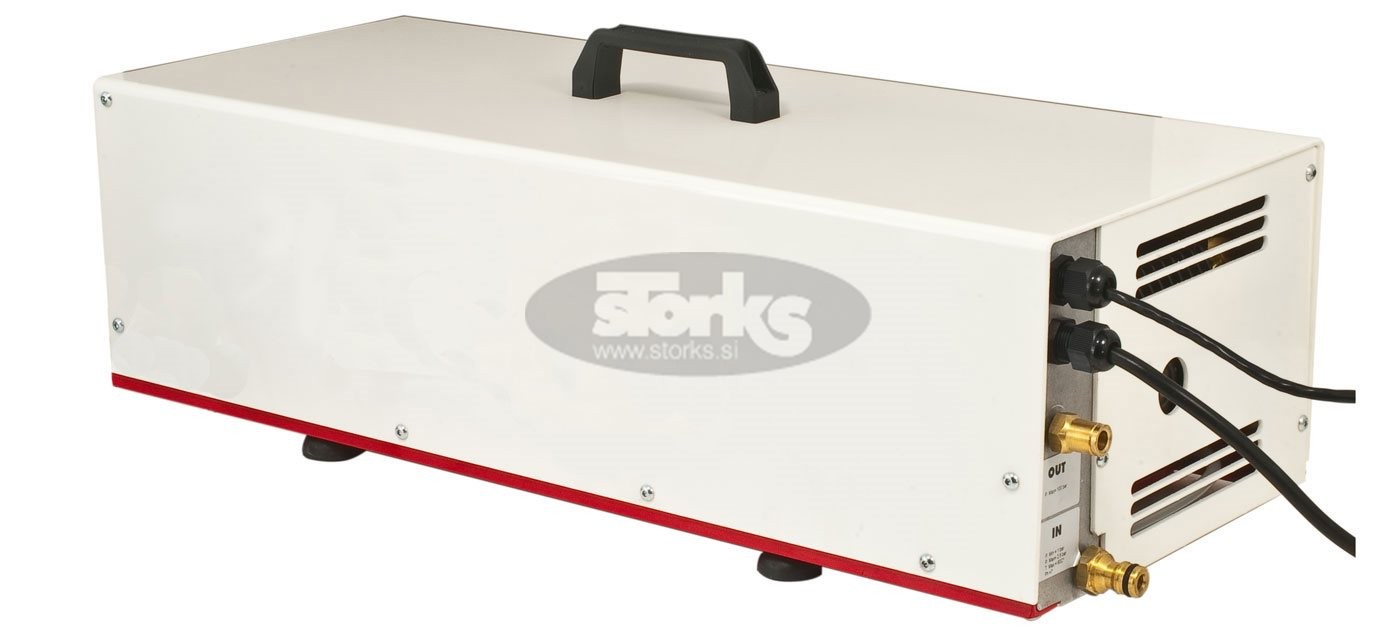

Pump features:
Power: 1500W
Pressure: 0-100 bar
Weight: 24.5 kg
Dimensions: 530 x 232 x 196 mm
Supply pressure: 1 - 2.5 bar
Voltage: 230V~ 50Hz
Operating temperature: 0-50°C
IP Protection: IPX5
We recommend adding the Pump Connection KIT and a 1 μm Filter.
