Egoe LEVA glass roof with side overhang, glass

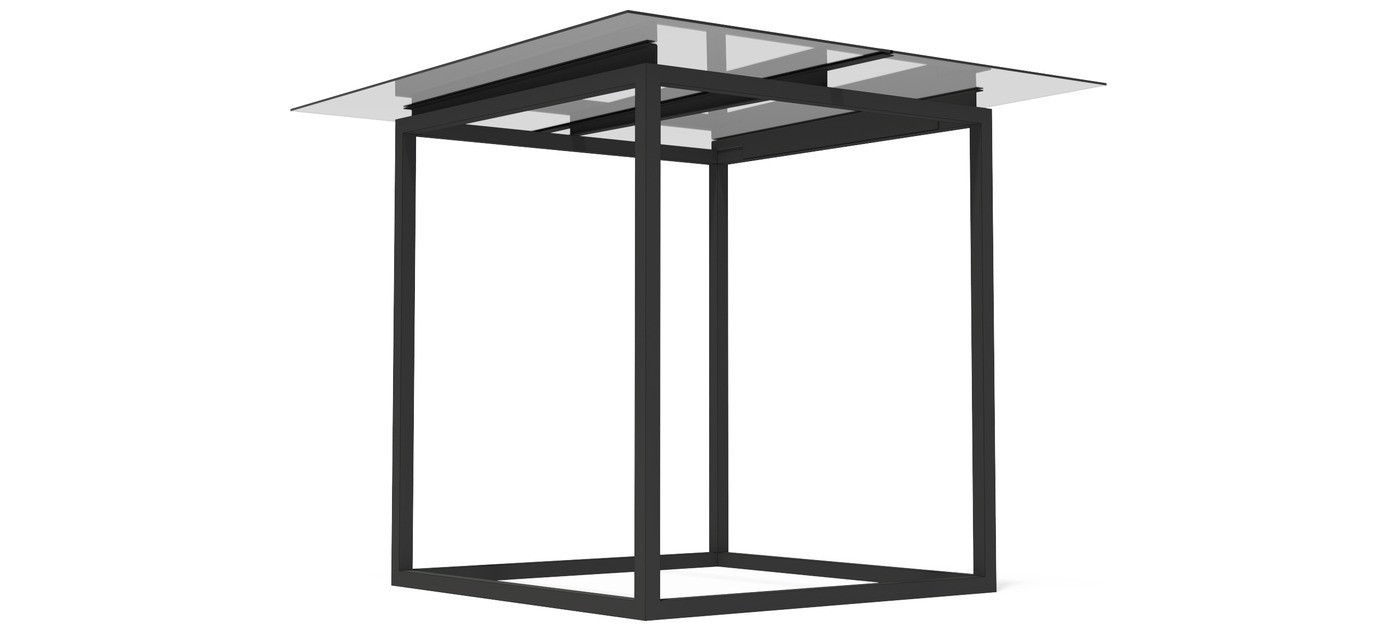

The glass roof with side overhang reaches past the edge of the LEVA module and covers the strip beside it. It combines tempered safety glass, a zinc coated and powder coated steel structure and rubber sealing strips. The overhang shelters an entrance or an outdoor bench from rain.
structure: steel, zinc coated and powder coated, rubber sealing strips
material: tempered safety glass
structure colour: on request, 22 standard RAL shades
dimensions: 297 x 295.5 cm
weight: 250 kg
design: Egoé studio
item code: LEV409-002400
Technical data
- dimensions: 297 x 295.5 cm (2970 x 2955 mm)
- weight: 250 kg
- structure: steel, zinc coated and powder coated, rubber sealing strips
- material: tempered safety glass
- structure colour: on request, 22 standard RAL shades (RAL 9010, 1013, 1021, 2008, 3020, 3016, 3003, 3012, 5011, 5019, 5024, 6027, 6019, 6010, 6007, 7022, 7006, 7032, 7035, 7016, 9005, 9007)
- design: Egoé studio
- item code: LEV409-002400
- made by Egoé, Czech Republic
About the LEVA system
LEVA is a modular system built from a basic cube and accessories. At home it becomes a children's playroom with a climbing wall, a resting corner with a hanging bed, a dining area of several joined cubes or an outdoor kitchen with herb planters. Companies use it for outdoor offices, festival pergolas, exhibition spaces and cinemas. The structural beams are larch or acacia, the steel joints are galvanised and powder coated, and the textiles and outdoor parts resist weather and need little maintenance. The roofs cover a cube and decide how much sun and rain it lets through.
See the whole system in the Egoé LEVA category and the other modules of this group under Roofs.
