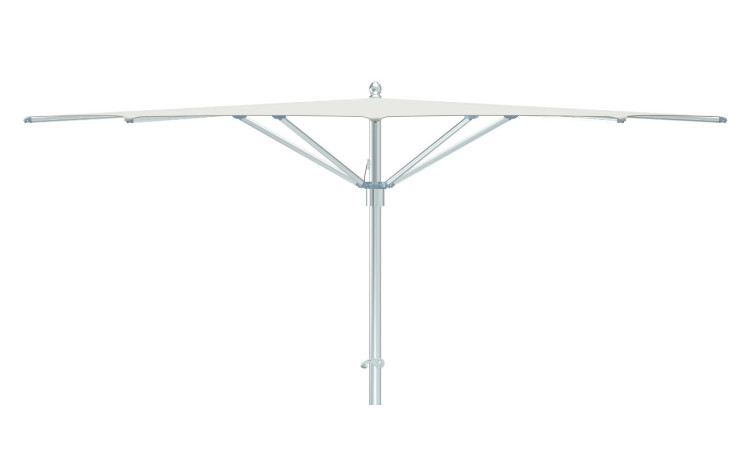

Ocean Master MAX Zero Horizon

Ocean Master MAX Zero Horizon has a flat canopy without a wind vent. You get a lot of shade and keep an open view of the garden or landscape. It comes in 4 sizes, from 300 x 300 cm to R 490 cm.
frame: aluminium, mast Ø 60 or 73 mm, polished titanium hub
lift: Auto-LOC or EasyDrive crank
sizes: square 300 x 300 and 425 x 425 cm, octagon R 365 and R 490 cm
frame colours: Polished Titanium, 8 powder coats, 6 Plantation Aluma-Teak
fabric: Marine MXT level C, Premier PXT level E
Softscape: 23 printed patterns (surcharge)
code: OMXZ

Round anchor with an aluminium shell filled with concrete and lift handles. Choose ACF200 with 91 kg or ACF250 with 109 kg. Marine Silver and 8 powder coats come at no extra cost, Plantation Aluma-Teak costs extra.
code: ACF

Square anchor made of galvanised steel plates with a stainless steel security stem. You can stack the plates up to 363 kg. The top plate cover and Tuff wheels are optional.
code: GV-MAX

The cube anchor is a complete set with frame, pavers and cover. It measures 116 x 116 x 20 cm and weighs 317 kg (8 pavers) or 437 kg (12 pavers). Powder coat is included.
code: AGSP

The upholstered cushion covers the full cube anchor and turns it into a seat. It measures 116 x 116 x 20 cm. Level B and C fabrics are included, Premier PXT (level E) costs extra.
code: AGSP-FCC

The aluminium cover hides the MAX stainless steel extension (BASE-EXT). You set the height from 10 to 40 cm with your order. The standard finish is Silver Sand.
code: BASE-EXTCV

Mount for setting into newly poured concrete. It fits all MAX anchor stems. It measures 15.2 x 31.5 cm.
code: IGSM

Stainless steel plate for fixing onto an existing concrete pad. It comes with 8 drop-in expansion anchors. It fits all MAX anchor stems.
code: MAXPLATE

Stainless steel flush mount that sits level with the floor. It suits dry and newly poured concrete. Dry concrete needs core drilling. The aluminium adapter ships with the MAX parasol.
code: OMXSSFM

Stainless steel flush mount for wood decks with a side mount bracket. The bolts for the side mount are included. The aluminium adapter ships with the MAX parasol.
code: OMXSSFM(D)

The stainless steel extension raises the MAX parasol above its mount. You set the height from 5 to 50 cm with your order. It fits all MAX anchor stems.
code: BASE-EXT

Package of an Ambia LED light and 2 infrared heaters, fitted at the factory. The heaters sit on the frame and pivot to warm the space below, the wiring is hidden inside. You choose it when you order an Ocean Master MAX Classic, Manta or Crescent.
code: HEAT-OMX-2

Package of an Ambia LED light and 4 infrared heaters, fitted at the factory. The heaters sit on the frame and pivot to warm the space below, the wiring is hidden inside. You choose it when you order an Ocean Master MAX Classic, Manta or Crescent.
code: HEAT-OMX-4

Additional battery for the battery powered Ambia LED light. Keep a spare to swap for an empty one and the light stays on.
code: AMBIA-BATTERY
