Selfstanding pergolas

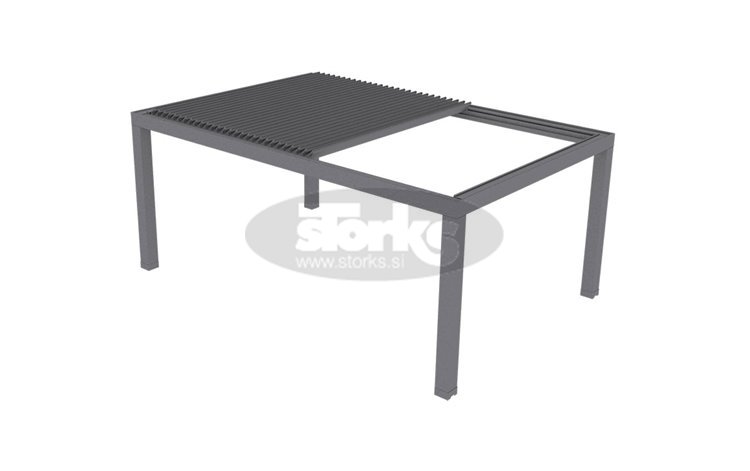

Maximal dimensions: width 4,5 m x projection 6 m with only 4 poles of 20 x 20 cm.Retractable and self-supporting bioclimatic pergola, made of aluminum, with a refined and innovative design.Perimeter water drain profile 20 x 21,5 cm, with integrated water collection in the uprights.Roof made of aluminum blades H4 x W22,5 cm packable from 0° to 69°, complete with gaskets and side water drainage gutters.According to blade orientation, the structure will offer total or partial protection from the sun, perfect air conditioning, and a safe shelter from the rain, becoming a space always enjoyable.Exclusive motor operation. The structure offers additional options, such as LED lights, capable of creating synergies between the new environment and the surrounding space, which generate new solutions always original and customizable.

Maximal dimensions: width 5 m x projection 8 m with only 4/6 poles of 20 x 20 cm.Bioclimatic self-supporting pergola with a refined and innovative design.Perimetrical water drain 20 x 20 cm for the outflow of rain water in vertical poles.Roof made of aluminium blades L 4 x 22 cm that can be orientated from 0° to 140°, complete with gaskets and lateral drain of water.The structure can offer a complete or a partial protection from sun, a perfect air-conditioning and an assured shelter from rain, becoming a real living space.Working by linear motor low-tension.Availability of options as LED lights or curled curtains, generating synergies between the new and the existing environments, offering each time personalized and original solutions.Bearing poles consent the application of sun-breakers or glass doors which are perfectly integrated to the classical vertical blinds.

Maximal dimensions: width 5 m x projection 8 m.Bioclimatic pergola for instalation on existing structures with a refined and innovative design.Perimetrical water drain 20 x 20 cm for the outflow of rain water in vertical poles.Roof made of aluminium blades L 4 x 22 cm that can be orientated from 0° to 140°, complete with gaskets and lateral drain of water.The structure can offer a complete or a partial protection from sun, a perfect air-conditioning and an assured shelter from rain, becoming a real living space.Working by linear motor low-tension.Availability of options as LED lights or curled curtains, generating synergies between the new and the existing environments, offering each time personalized and original solutions.Bearing poles consent the application of sun-breakers or glass doors which are perfectly integrated to the classical vertical blinds.

Maximal dimensions: width 5 m x projection 8 m with only 2/3 poles of 20 x 20 cm.Bioclimatic wall-supporting pergola with a refined and innovative design.Perimetrical water drain 20 x 20 cm for the outflow of rain water in vertical poles.Roof made of aluminium blades L 4 x 22 cm that can be orientated from 0° to 140°, complete with gaskets and lateral drain of water.The structure can offer a complete or a partial protection from sun, a perfect air-conditioning and an assured shelter from rain, becoming a real living space.Working by linear motor low-tension.Availability of options as LED lights or curled curtains, generating synergies between the new and the existing environments, offering each time personalized and original solutions.Bearing poles consent the application of sun-breakers or glass doors which are perfectly integrated to the classical vertical blinds.

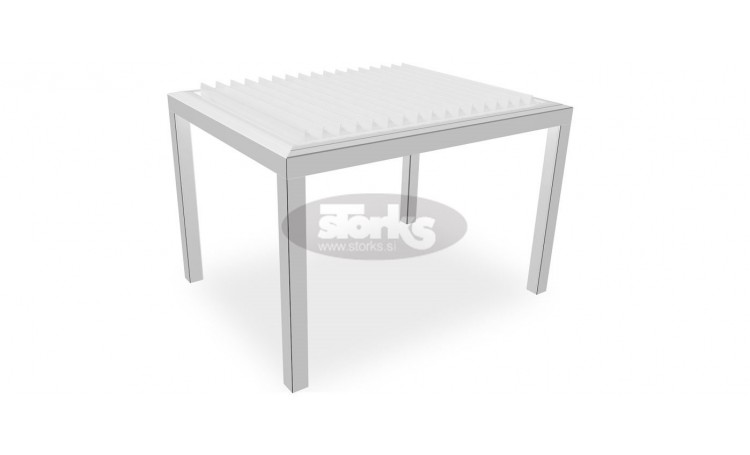

Maximal dimensions: width 4,5 m x projection 8 m with 4/6 poles of only 20 x 20 cm.Bioclimatic self-supporting pergola with a refined and innovative design.Perimetrical water drain for the outflow of rain water in vertical poles.Integrated ZIP closings and all-glass system.Roof made of aluminium blades L 4 x 22 cm that can be orientated from 0° to 140°, complete with gaskets and lateral drain of water.The structure can offer a complete or a partial protection from sun, a perfect air-conditioning and an assured shelter from rain, becoming a real living space.Working by linear motor low-tension.Availability of options as LED lights, generating synergies between the new and the existing environments, offering each time personalized and original solutions.

Maximal dimensions: width 3,5 m x projection 5,1 m with 4 poles of only 13 x 13 cm.Bioclimatic self-supporting pergola with a refined and innovative design.Perimetrical water drain 20 x 16,5 cm for the outflow of rainwater in vertical poles.Roof made of aluminium blades L 4 x 22 cm that can be orientated from 0° to 140°, complete with gaskets and lateral drain of water.The structure can offer a complete or a partial protection from sun, a perfect air-conditioning and an assured shelter from rain, becoming a real living space.Working by linear motor low-tension.Availability of options as LED lights or curled curtains, generating synergies between the new and the existing environments, offering each time personalized and original solutions.

Maximal dimensions: 4.75 m x projection 8.25 m with 4/6 20x20 poles of only.Bioclimatic self-supporting pergola with a refined and innovative design.
The sliding all-glass system, positioned outside the structure for a pleasant “House of Glass” effect.
20 x 20 cm perimetrical gutter for the outflow of rain-water in vertical poles.
Roof made of aluminum blades 22 x 4 cm that can be oriented from 0° to 140°, complete with gaskets and lateral water drain.
The structure can offer complete or partial protection from sun, a perfect air-conditioning, and a safe shelter from the rain, becoming a real living space.
Working by linear motor low-tension.

Maximal dimensions: width 12 m x projection 6 m with 4/6/8 poles of only 13 x 13 cm.Pergosquare satisfies the request of a big visual and emotional installation impact: a value that lasts in time and makes every environment exclusive.Self-standing structure working by the motor.Main profiles in extruded aluminum, section 130x130mm, assembled with elegant steel brackets. Traction system by a high resistant toothed belt, running on ball bearings, and particularly quiet carriages.The retractable roof, made of strips of flame retardant PVC fabric of good dimensional stability, is good for sun, rain, and wind protection.Separated cloths with double side slope for water drainage, with a space-saving bag.Possibility of water drainage from only one side of the structure or alternately, and to integrate the lower waved acrylic fabric into the oval slats, for optimum aesthetic comfort.

Maximal dimensions: width 8 m x projection 8 m with 4 poles of only 20 x 20 cm.Self-supporting aluminum structure with a refined and innovative design.Lateral edge 60 x 20 cm with integrated rain collection in poles.Mobile cover made of fire-retardant blackout PVC fabric with stretched cloth with a side water drain.Pergolife offers additional options, such as LED lights or drapery sheets, capable of creating synergies between the new environment and the surrounding one, which generates new solutions that are original and customized each time.The load-bearing profiles allow the application of sunshades and windows that integrate well with the typical roller closures.

Maximal dimensions is 4 m width x 8 m projection with two poles of dimension 20 x 20 cm.Aluminium self-supporting structure manual working by rope.Mobile coverage realized in shading fireproof PVC, independent cloths.Sliding system on double aluminium rail of 8 x 13 cm.Possibility to create different shapes previous request and evaluation by our technical office for final realization and prices.
